GoodWe 4.2kW On-Grid Solar Inverter GW-4200-DNS-30
GoodWe 4.2kW On-Grid Solar Inverter GW-4200-DNS-30
Couldn't load pickup availability

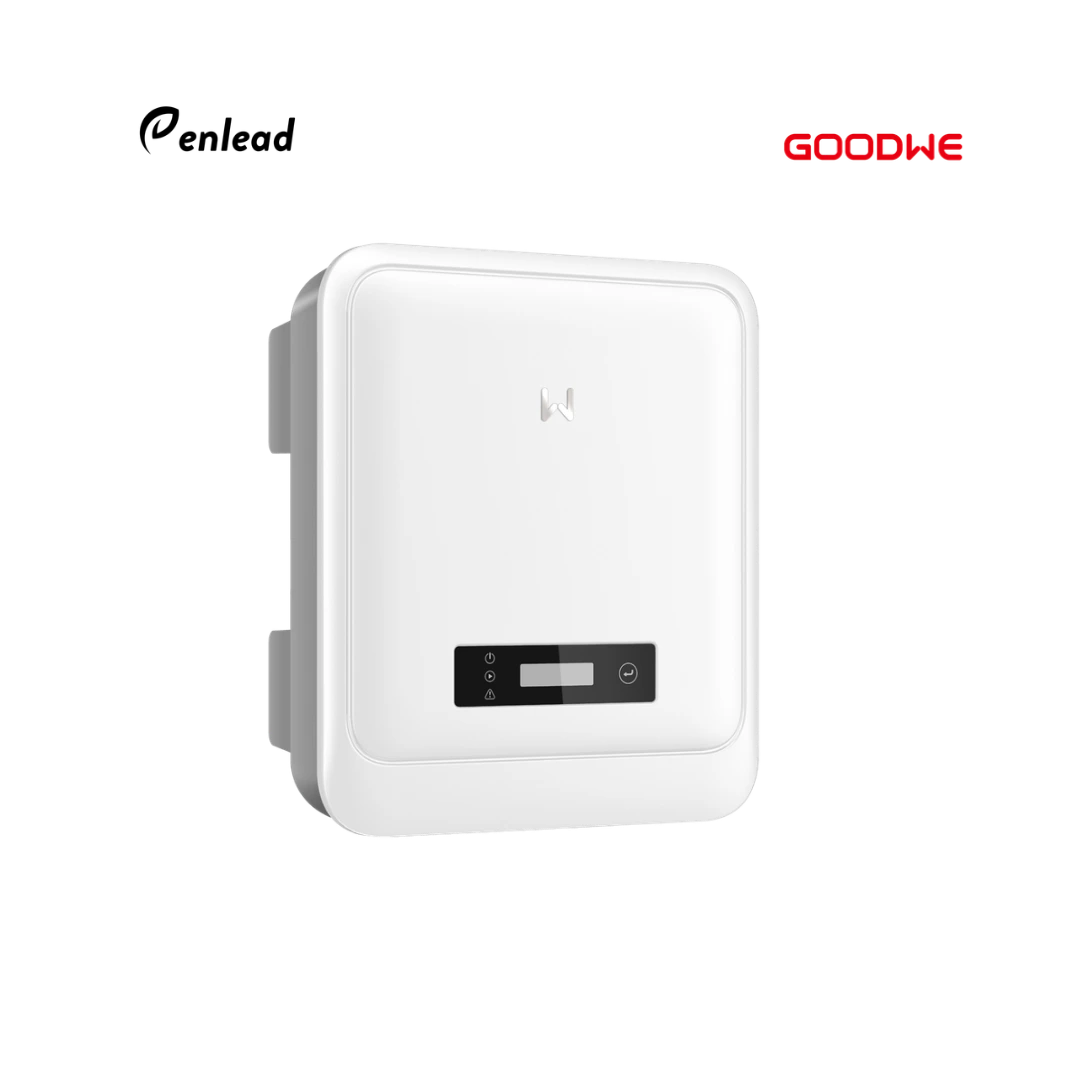

The GoodWe GW-4200-DNS-30 is a robust, high-performance solar inverter designed for residential and light commercial grid-tied solar systems. This ongrid solar inverter delivers stable AC power by efficiently converting DC energy from solar panels, maximizing clean energy use while reducing electricity costs. As part of GoodWe’s proven DNS series with dual MPPT technology, it offers wider voltage flexibility (approx. 80–550 V) and excellent energy harvesting under varied solar conditions.
With a low start-up voltage (≈ 80 V), dual maximum power point trackers, and DC oversizing capabilities, the GW-4200-DNS-30 is built to support modern high-power PV modules and achieve peak performance even during low-light periods. Its compact, lightweight, fan-less design ensures quiet, maintenance-free operation and convenient installation. The inverter is ruggedly built with IP65/IP66 weatherproof protection for outdoor placement and supports smart monitoring via Wi-Fi/LAN/RS485.
Fully compatible with net-metering systems and eligible for solar subsidy, MNRE subsidy, and PM Surya Ghar programs when paired with approved components, this ongrid inverter is ideal for homeowners and installers seeking reliable, efficient, and future-ready solar power solutions. Enlead Energy Solutions is a trusted solar energy company and professional solar installer, providing expert design, installation, and after-sales support for your solar project.
Technical Specifications – GoodWe GW-4200-DNS-30
| Specification | Details |
|---|---|
| Model | GW-4200-DNS-30 |
| Type | On-Grid Solar Inverter |
| Nominal AC Output Power | 4,200 W |
| Max AC Apparent Power | ~4,200 VA |
| AC Output Current | ~19 A |
| Nominal AC Voltage | 220 / 230 / 240 V |
| AC Frequency | 50 / 60 Hz |
| MPPT Trackers | Dual (2) MPPT |
| MPPT Voltage Range | ~80–550 V DC |
| Start-Up Voltage | ~80 V DC |
| Max DC Input Voltage | 600 V DC |
| Max DC Input Power | ~5,460 W (≈ 130% DC oversizing) |
| Max Input Current per MPPT | ~16 A |
| Max Efficiency | Up to ~97.8% |
| Communication & Monitoring | Wi-Fi, RS485, LAN, LCD/LED |
| Protection Features | Anti-islanding, surge & short circuit protection, reverse polarity protection |
| Cooling | Natural convection (fan-less, low noise) |
| Ingress Protection | IP65 / IP66 |
| Dimensions | ~354 × 433 × 147 mm |
| Weight | ~12.8 kg |
| Warranty | Typically 7–10 years (varies by market) |
| Application | Residential & small commercial grid-tie solar systems |
Share
About Goodwe Ongrid Solar Inverter
What type of inverter is GoodWe GW-4200-DNS-30?
It is a single-phase on-grid solar inverter designed for residential and small commercial rooftop solar systems.
Is this inverter compatible with solar subsidy schemes?
Yes, when installed with approved components, it is compatible with solar subsidy, MNRE subsidy and PM Surya Ghar rooftop solar programs.
Can this ongrid inverter work during power cuts?
No. As an on-grid inverter, it automatically shuts down during grid outages for safety compliance.
Is it suitable for outdoor installation?
Yes, with IP65/IP66 protection, it is suitable for outdoor and indoor installations.
Who can install this inverter?
It should be installed by a certified solar installer such as Enlead Energy Solutions, a trusted solar energy company providing professional solar installation and support services.
