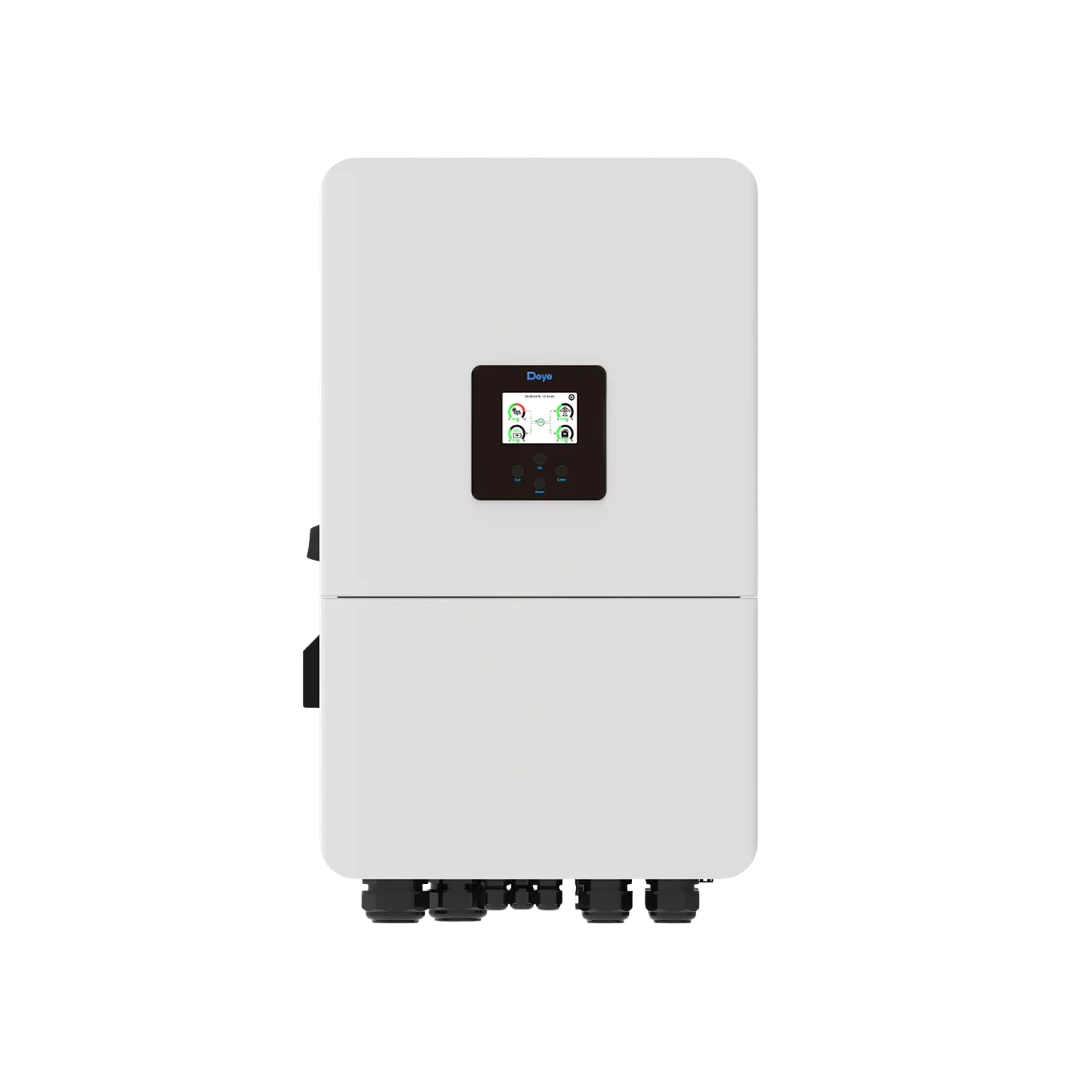

Deye Hybrid Inverter 20kW SG05-SM2 – Three Phase Solar Hybrid Inverter
The Deye Hybrid Inverter 20kW SG05-SM2 is a high-performance three phase solar hybrid inverter designed for large homes, commercial buildings, farms and high-demand solar energy storage systems. The SUN-20K-SG05LP3-EU-SM2 intelligently integrates solar panels, 48V battery storage, grid power and generator energy, making it an ideal hybrid inverter for reliable backup and maximum solar energy utilisation.
Built for high-capacity solar power systems, this Deye 20kW hybrid inverter supports up to 40,000W PV access power, 32,000W maximum PV input power and a wide 160–650V MPPT voltage range. Dual MPPT with 2+2 PV strings improves solar power harvesting, while the maximum 350A battery charging and discharging current supports demanding energy storage applications. It works with lead-acid and lithium-ion batteries within a 40–60V battery voltage range and supports BMS communication for lithium batteries.
With 97.6% maximum efficiency, over 99% MPPT efficiency, 100% unbalanced output, AC coupling and parallel operation of up to 10 units, the Deye solar hybrid inverter is engineered for on-grid, off-grid and battery backup solar systems. Six programmable battery charging and discharging periods and diesel generator energy storage support provide greater control over power usage.
Buy the Deye Hybrid Inverter 20kW SG05-SM2 from Enlead Energy, a trusted solar energy solutions and solar equipment supplier serving customers and solar projects across Kerala and India. Enlead Energy offers Deye hybrid inverters, solar hybrid inverters, lithium batteries, solar panels and energy storage solutions for residential, commercial and industrial applications. Our technical team helps customers and solar professionals select the right hybrid inverter and battery storage system based on solar capacity, backup requirements and energy consumption. Whether you are searching for a Deye hybrid inverter in Kerala, a 20kW hybrid inverter in India, or a high-capacity solar hybrid inverter for commercial use, Enlead Energy Solutions provides genuine solar products, technical product guidance and reliable supply for modern solar energy systems.
Deye 20kW SG05-SM2 Technical Specifications
| Technical Specification | Deye SUN-20K-SG05LP3-EU-SM2 |
|---|---|
| Model | SUN-20K-SG05LP3-EU-SM2 |
| Inverter Type | Three Phase Hybrid Solar Inverter |
| Rated AC Input/Output Active Power | 20,000 W |
| Max. AC Input/Output Apparent Power | 22,000 VA |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60 V |
| Max. Charging/Discharging Current | 350 A |
| Number of Battery Inputs | 2 |
| Max. PV Access Power | 40,000 W |
| Max. PV Input Power | 32,000 W |
| Max. PV Input Voltage | 800 V |
| Start-up Voltage | 160 V |
| MPPT Voltage Range | 160–650 V |
| Rated PV Input Voltage | 550 V |
| No. of MPPT / PV Strings | 2 / 2+2 |
| Max. PV Operating Input Current | 36A + 36A |
| Max. PV Short-Circuit Current | 54A + 54A |
| Max. Continuous AC Passthrough | 70 A |
| Peak Off-Grid Power | 2 Times Rated Power for 10 Seconds |
| Maximum Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | >99% |
| Rated Input/Output Voltage | 220/380V, 230/400V |
| Grid Connection | 3L + N + PE |
| Communication | WiFi, RS485, CAN |
| Display | LCD |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +60°C; derating above 45°C |
| Cooling | Intelligent Air Cooling |
| Dimensions | 456 × 750 × 268.5 mm |
| Weight | 51.9 kg |
Technical specifications are based on the Deye SG05-SM2 datasheet, including the specific 20kW model ratings and general inverter data.
*Regional exclusivity of distribution in India will be strictly followed for purchase and sales.
