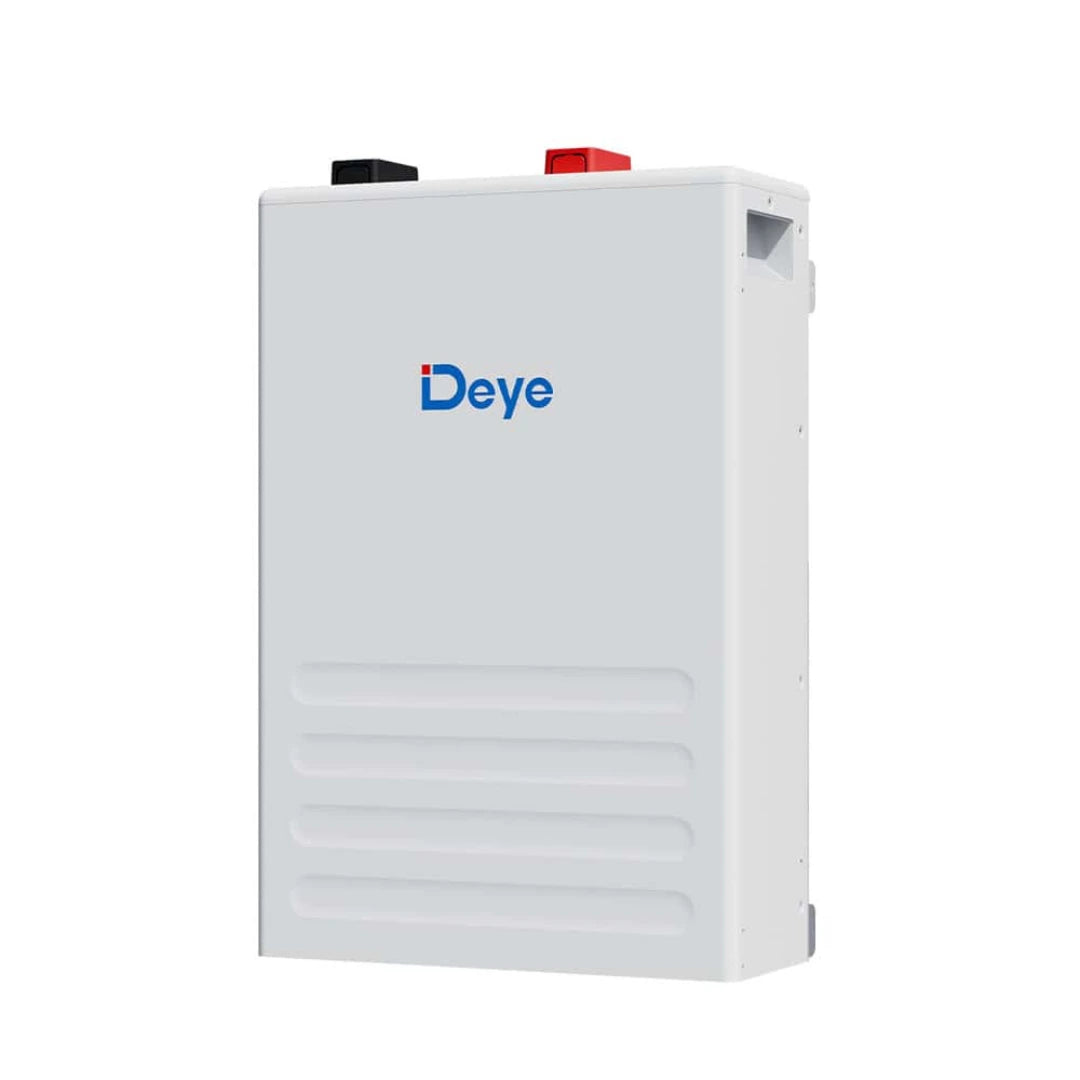

Deye Lithium ion Battery SE-F5 PLUS 5.12KW

Deye Lithium ion Battery SE-F5 PLUS 5.12KW

Rs. 95,000.00
Rs. 115,000.00 Rs. 95,000.00
Sale Sold out

  •  Superior Performance: High-power capabilities and enhanced high-temperature resistance
  • Optimized Energy Density: Integrated PACK design for minimal line loss and maximum power output
  • Advanced Safety: Equipped with a comprehensive Battery Management System (BMS) and active fuse
  • Scalable Solution: Supports up to 32 units in parallel for flexible energy storage expansion
  • User-Friendly Monitoring: Auto-networking and versatile monitoring options for both local and remote access.
  • Durable Design: Operates in extreme temperature ranges(-20°C to 55°C) ,with a cycle life of over 6,000 cycles.
  • Long Warranty: Backed by a 10-year warranty* and substantial energy throughput.





  Description of SE-F5 Plus LiFePO4 Battery

Specification Details
Battery Chemistry LiFePO₄
Capacity 100 Ah
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Nominal Energy 5.12 kWh
Charge Current Max. Continuous: 100 A/ Peak: 120 A (10 sec)
Discharge Current Max. Continuous: 120 A / Peak: 150 A (10 sec)
Recommended Depth of Discharge (DoD ) 90%
Dimensions (W × H × D) 370 × 548 × 140 mm
Approximate Weight 41 kg
LED Indicators SOC, working, protecting, & Buzzer
IP Rating of Enclosure IP21
Operating Temperature Charge: 0~55°C / Discharge: -20°C~55°C
Storage Temperature 0~35°C
Relative Humidity 95% non-condensing
Altitude ≤3000 m



 Features and Benefits of Deye SE-F5 Plus Lithium battery

  • Enhanced Performance & Efficiency: High-power capabilities support maximum I²C charging and discharging. Incorporates advanced GaN MOSFET technology, resulting in a 50% reduction in energy losses and superior high-temperature resistance.
  • Optimized Energy Density: Integrated PACK design minimizes line loss, significantly boosting overall energy density and maximizing power output in a compact footprint.
  • Comprehensive Safety Measures: Equipped with an advanced Battery Management System (BMS) featuring an active fuse, ensuring multiple layers of safety and safeguarding your investment.
  • Flexible Expansion & Scalability: Effortlessly expand your energy storage capacity to meet growing demands, supporting up to 32 units in parallel for exceptional scalability.
  • Streamlined Maintenance & Monitoring: Auto-networking capabilities simplify setup. Offers versatile monitoring options, including local battery monitoring and remote ESS monitoring, keeping you informed and in control.
  • Exceptional Durability & Longevity:
    • Ooperates effectively across a wide temperature range from -20°C to 55°C
    • Features cycle life of over 6,000 cycles (at 25°C, 2%EOL, 70%EOL)
    • Backed by a 10-year warranty and a substantial 16 MWh energy throughput

Installation of hybrid solar power system with lithium ion Battery will be provided by Enlead Energy Solutions solar company.
