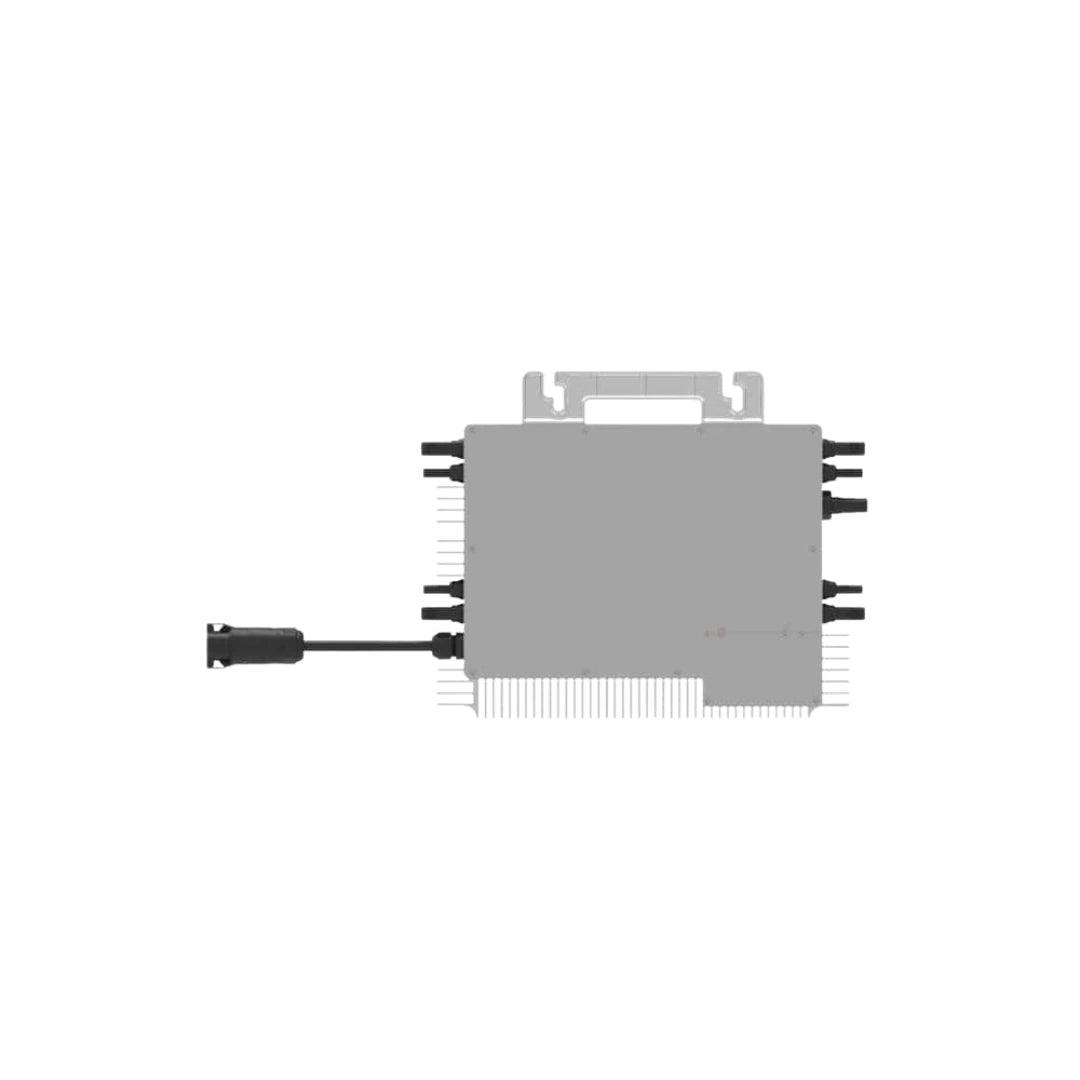

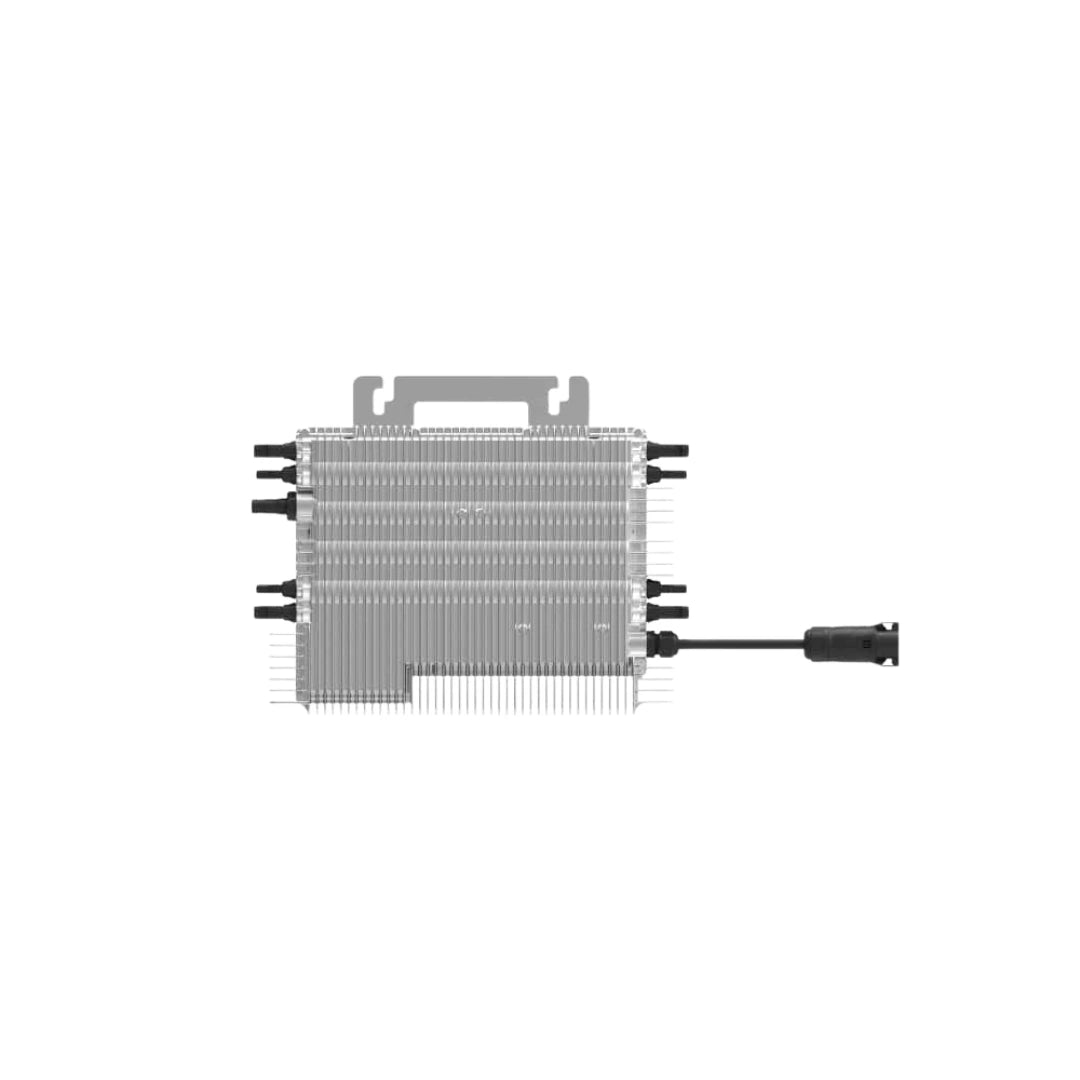

Deye Microinverter SUN-M200G4-EU-Q0

Deye Microinverter SUN-M200G4-EU-Q0

Rs. 19,499.00
Rs. 21,499.00 Rs. 19,499.00
Sale Sold out

Deye SUN-M200G4-EU-Q0 Microinverters

The SUN-M200G4-EU-Q0 series microinverter is a cutting-edge solution designed for efficient and reliable performance in photovoltaic (PV) systems. Featuring dual Maximum Power Point (MPP) trackers, module-level monitoring, and an IP67 protection rating, this microinverter series ensures superior power conversion and durability for a range of solar energy applications.

The Deye Solar Microinverter is engineered for maximum efficiency, safety, and reliability in modern solar energy systems. Designed to convert DC power from each solar panel into usable AC power, this advanced microinverter technology ensures higher energy yield, improved system flexibility, and enhanced monitoring at the panel level. With features like intelligent MPPT tracking, rapid shutdown compliance, and robust protection mechanisms, the Deye microinverter offers long-lasting performance even in challenging environments. Its modular design allows easy scalability, making it the ideal choice for residential rooftops, commercial projects, and industrial solar installations. By choosing Deye solar microinverters, you get superior durability, seamless grid connectivity, and the confidence of investing in a trusted global solar inverter brand.

Description Of Deye microinverter 2KW

 Key Features

  • Quad MPPT Technology: Each microinverter is equipped with four MPP trackers, ensuring maximum energy harvest by optimizing power conversion from each PV module.
  • High DC Input Capability: Capable of handling a maximum DC input current of 18A, making it compatible with high-output PV modules up to 700W.
  • Robust Protection: The IP67 rating provides superior resistance to dust and water, adding to the longevity and reliability of the inverter in various environmental conditions.
  • Integrated WiFi: Enables real-time system monitoring and management through an intuitive interface, ensuring optimal performance at all times.
  • Ease of Installation: Ideal for quick-plug balcony PV systems, simplifying the installation process and reducing setup time.
  • Extended Warranty: Offers a 10-year warranty (with an option for a 15-year warranty in Germany and Austria), providing long-term reliability and peace of mind.

Technical Specifications

  • Model :
    • SUN-M200G4-EU-Q0
  • PV Input:
    • Max. Input Voltage: 60V
    • Start-up Voltage: 20V
    • MPPT Voltage Range: 25-55V
    • Max. Operating PV Input Current: 18 + 18 + 18 + 18A
    • Max. Input Short Circuit Current: 27 + 27 + 27 + 27A
  • AC Output:
    • Rated Active Power: 1300-2200W
    • Max. Apparent Power: 1300-2200VA
    • Grid Connection: L/N/PE
    • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
    • Rated Output Frequency: 50/60Hz
    • Power Factor: 0.9 leading to 0.9 lagging
    • Total Harmonic Distortion (THDi): <3%
    • Max. Efficiency: 96.5%
    • Euro Efficiency: 96.0%
    • MPPT Efficiency: >99%
    • Max. Units per Branch: Up to 5 units
  • Protection Features:
    • DC Polarity Reverse Connection Protection
    • AC Output Overcurrent Protection
    • AC Output Overvoltage Protection
    • AC Output Short Circuit Protection
    • Thermal Protection
    • DC Terminal Insulation Monitoring
    • Power Network Monitoring
    • Island Protection
    • Earth Fault Detection
    • Overvoltage Load Drop Protection
  • Environmental Specifications:
    • Operating Temperature: -40 to +65°C (Derating above 45°C)
    • Permissible Ambient Humidity: 0-100%
    • Permissible Altitude: 2000m
    • Noise Level: ≤25dB
  • Physical Characteristics:
    • Ingress Protection Rating: IP67
    • Cooling Method: Natural Cooling
    • Dimensions: 311×250.5×36.5 mm or 358×255.5×36.5 mm (excluding connectors and brackets)
    • Weight: 5.1 kg or 5.2 kg
  • Certifications and Standards:
    • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
    • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2









 To install a solar power system for home or hotel or hospital or educational institutions , contact enleadenergy.
