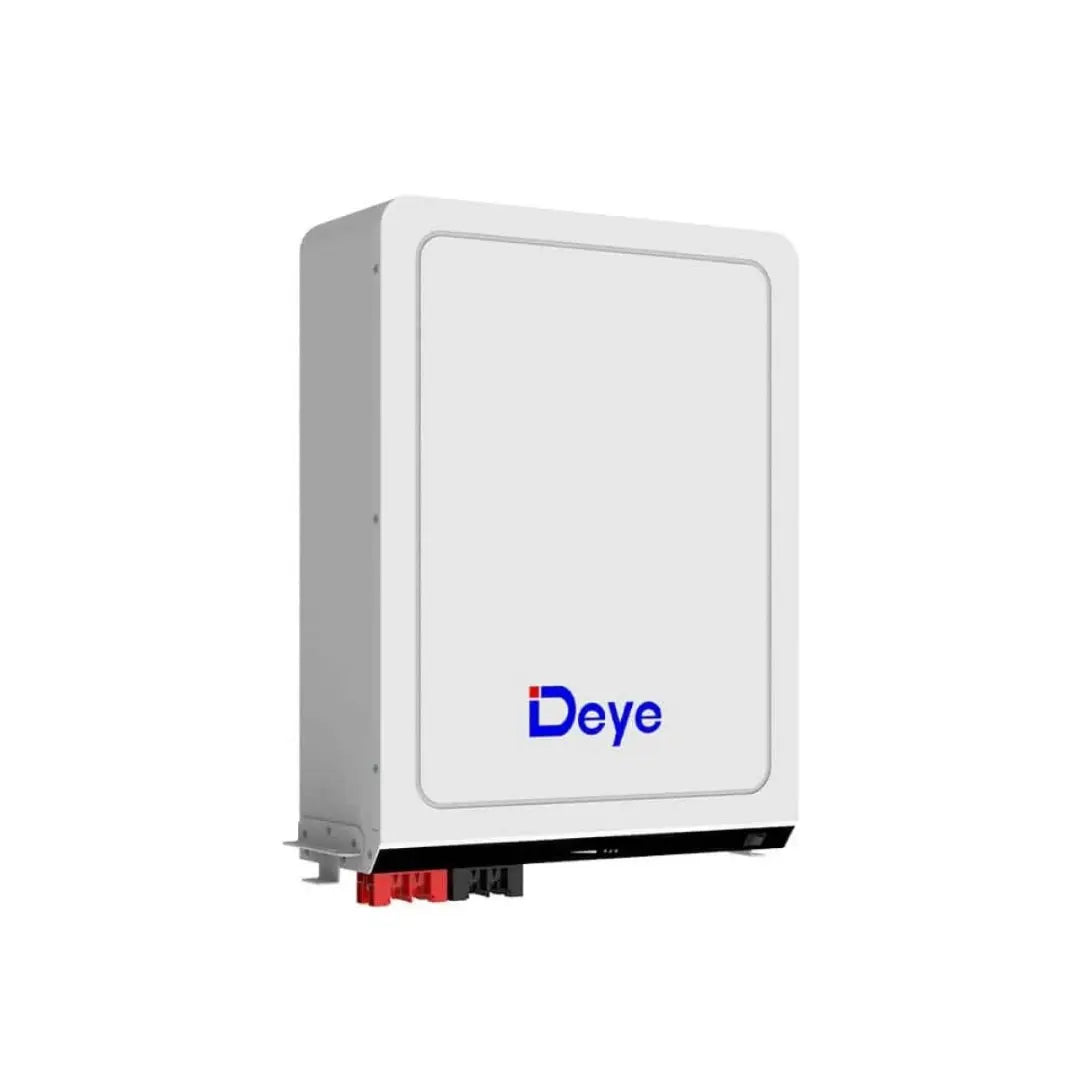

Deye Lithium ion Battery RWM5.3 104Ah 51.2V

Safer

Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long lifespan, high efficiency, and high power density.
Intelligent BMS, providing complete protection.

Reliable

Support high discharge power. IP20, natural cooling, wide temperature range:-20℃ to 55℃.

Flexible

Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 340kWh..
Suited to residential and commercial applications for increasing the self-consumption ratio.

Convenient

Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade of the firmware.

Eco-Friendly

Use of environmental protection materials, the whole module non-toxic, pollution-free.

Warranty: 10 years or 6000 cycles when bought with Deye Hybrid Inverters

Installation: Wall mount only

Build a Massive 340kWh Big Solar Battery Bank with the RWM5.3

The Deye RWM5.3 system makes it simple to create large-scale solar battery banks for overnight storage or backup power.

Each 5.32kWh battery module offers 104A continuous discharge and 120A peak current, capable of handling high power loads. By connecting up to 64 units in parallel, you can achieve 340kWh total capacity – sufficient for both residential and commercial solar setups.

An integrated battery management system (BMS) actively balances cells and prevents issues like overcharging or short circuits. It also enables remote monitoring and firmware updates for convenient maintenance.

With natural air cooling and an IP20 rating, the compact RWM5.3 operates from -20°C to 55°C. The wall-mounted design saves floor space and ensures a sleek, efficient installation.

Whether expanding an existing solar + storage system or starting fresh, the modular RWM5.3 makes it easy to design a custom lithium iron phosphate battery bank. It efficiently stores surplus renewable energy for overnight use or backup during grid outages.

The RWM5.3 Big Solar Battery Bank Delivers:

• 5.32kWh capacity per module

• Scalable design up to 340kWh

• 120A peak discharge current

• Integrated battery management and monitoring

• Wide operating temperature range

• Compact, wall-mounted design

 Invest in the modular, scalable RWM5.3 big solar battery bank to gradually build out your high-capacity solar energy storage system. Contact the Enlead Energy to customize the perfect solution for your needs.
