Enphase IQ Gateway Metered

The Enphase IQ Gateway Metered (envoy s)is an integral component of the Enphase Energy System that bridges communication between Enphase IQ Microinverters located on the rooftop and the Enphase App for remote control and monitoring.

The IQ Gateway Metered communicates with IQ Microinverters via standard AC powerlines and the Enphase App via cellular or wireless internet. The IQ Gateway enables homeowners to control grid management functions, monitor solar production, and monitor home energy consumption with a pair of Consumption Current Transformers (CTs) included.

Professional installation is required. Please contact your installer or find an Enphase installer that services your area.

• Includes two 200 A Current Transformers for production and consumption monitoring
• Designed for installation indoors or outdoors
• Easy system configuration using Enphase Installer App
• Bidirectional communications for remote upgrades
• Supports power export limiting and zero export applications
• Flexible networking with Wi-Fi, Ethernet, or cellular
• 5-year limited warranty
• Can replace Envoy R and older Envoy device

Technical Specifications

• Normal grid voltage - 230 V (L-N) Single phase/400 V (L-L) Three phase
• Integrated Wi-Fi
• Typical power consumption: 5 W
• Capacity: Up to 300 microinverters

Depth:45mm

Width:213mm

Height:126mm

Weight:0.5kg

Compatibility

• M Series
• S Series
• IQ Microinverters
• IQ Cables

What's in the box

• IQ Gateway

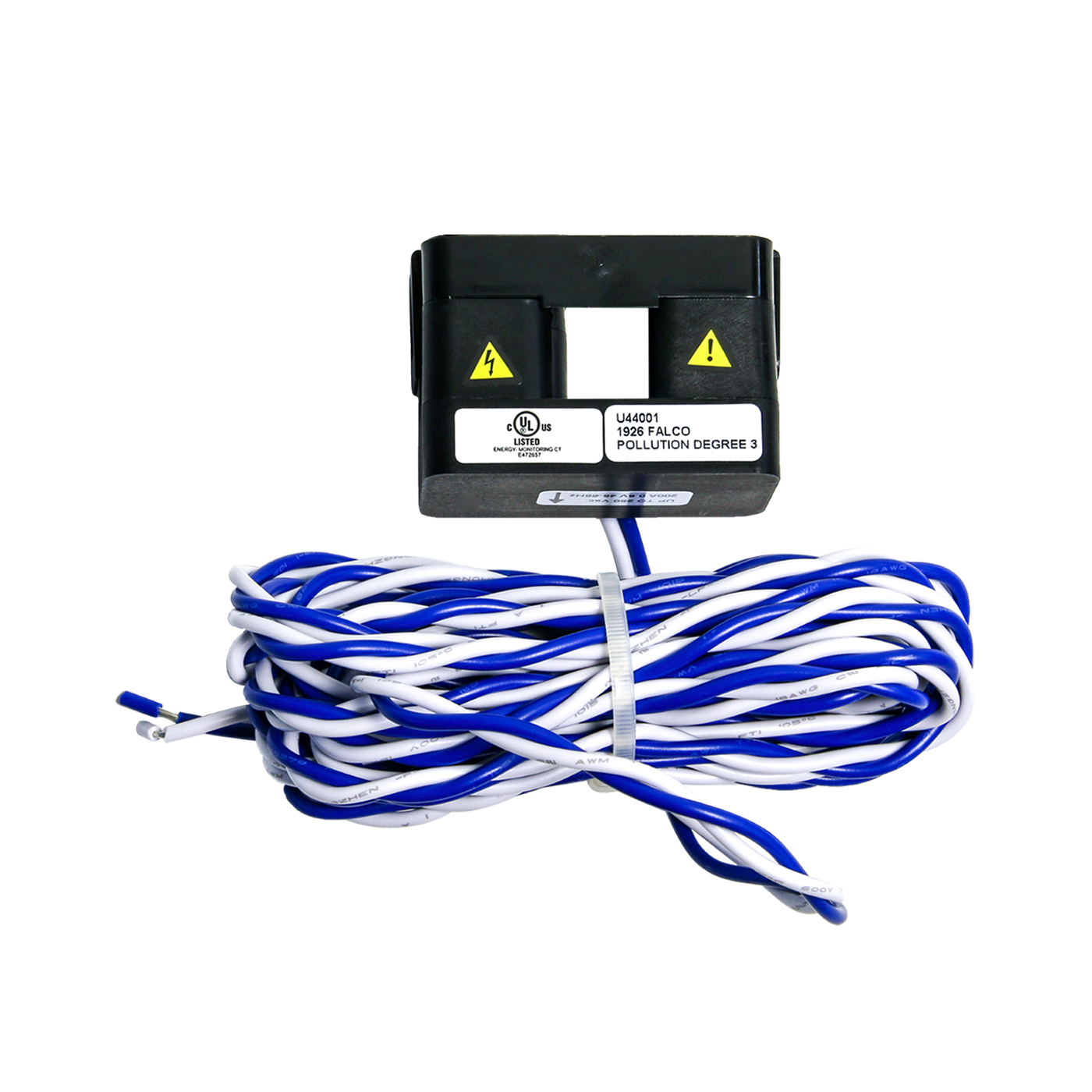

• 2 Current Transformers (Production and Consumption)
