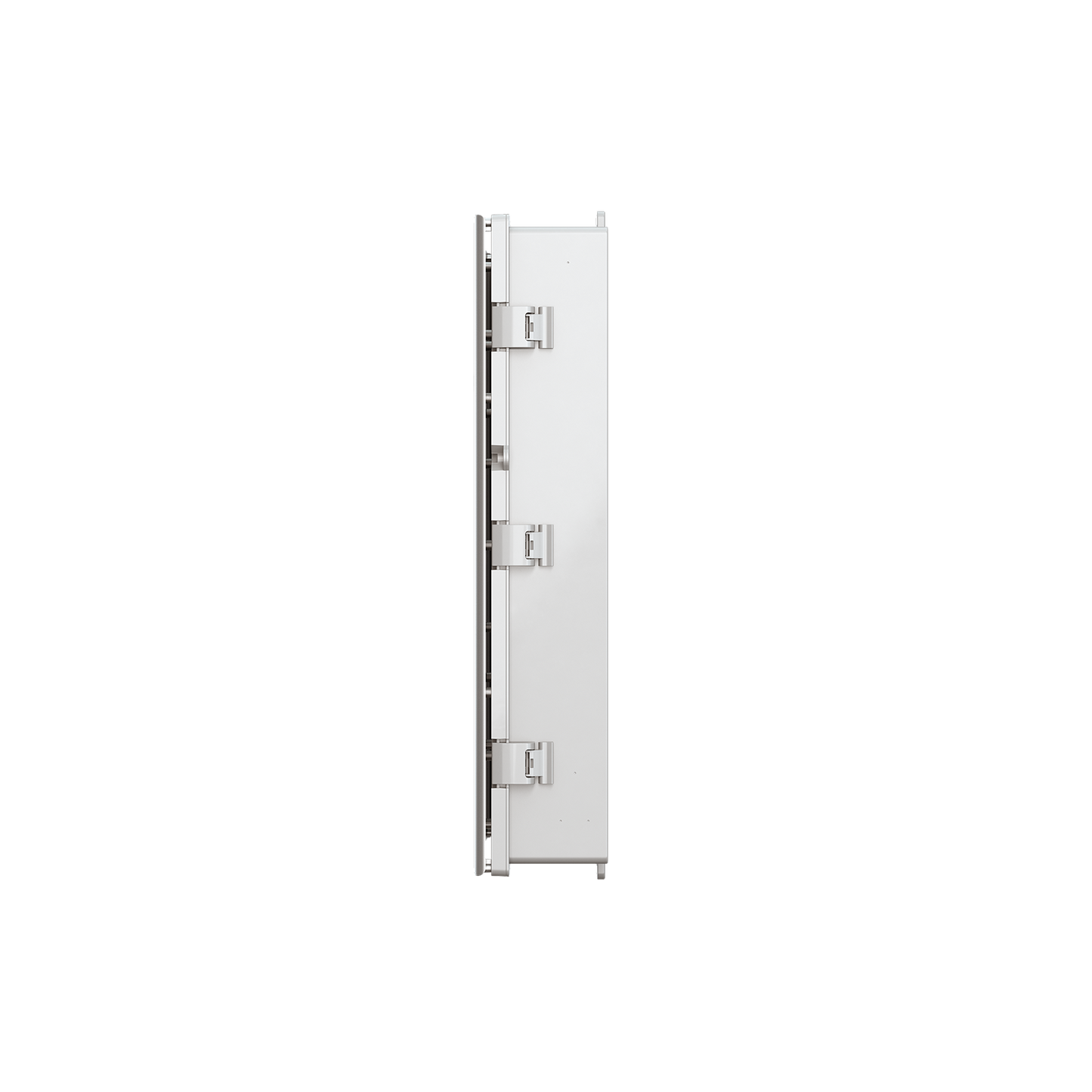

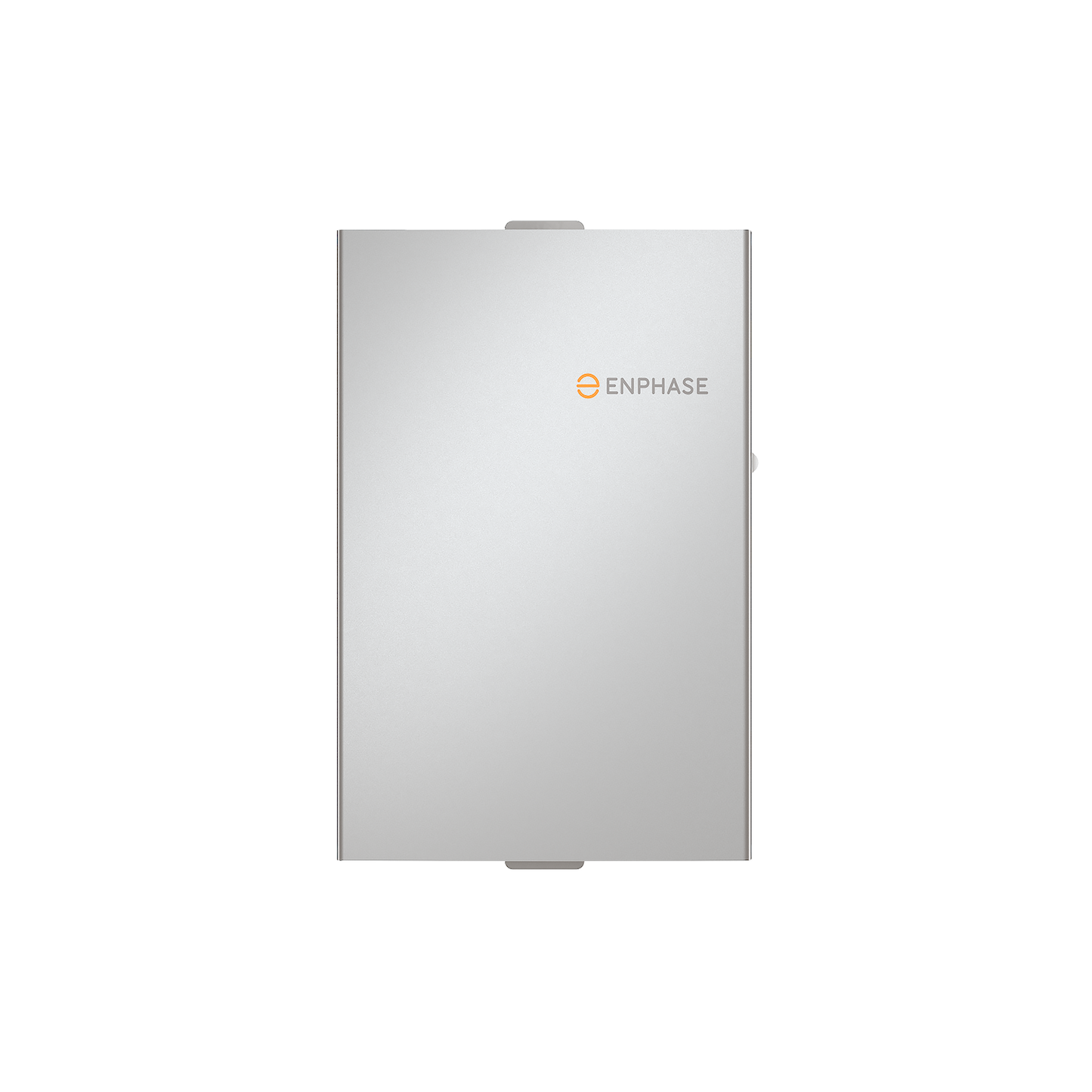

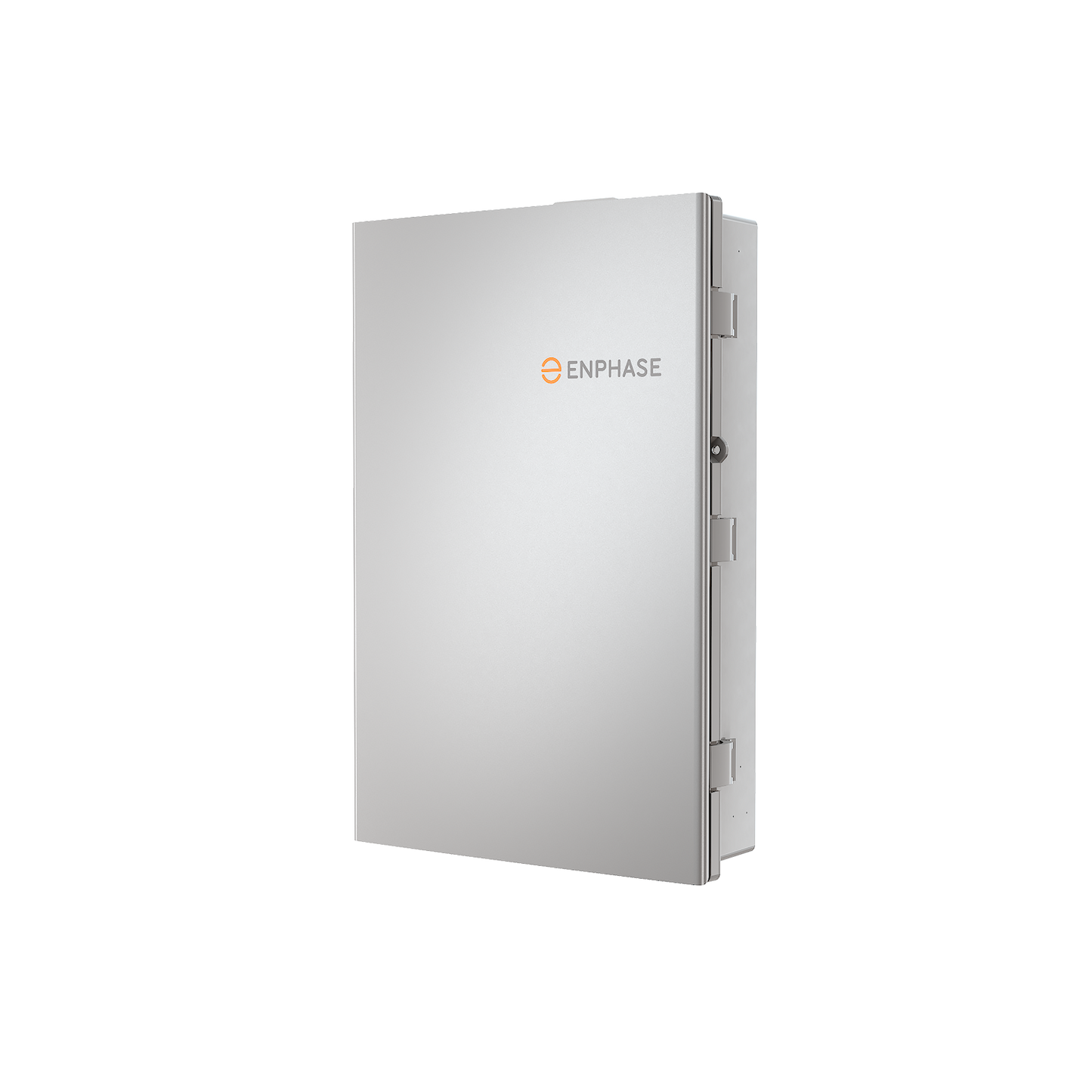

Enphase IQ System Controller 3 INT

The IQ System Controller 3 INT is only required if backup is needed and it connects the home to grid power, the IQ Batteries, and solar PV with microinverters. It provides microgrid interconnect device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure.

The Enphase IQ System Controller 3 INT consolidates interconnection equipment and the communication gateway into a single enclosure and streamlines the grid-independent capabilities of PV and storage installations by providing a consistent, pre-wired solution for residential or domestic applications.

Reliable

• Durable IP55 enclosure
• 10-year limited warranty

Smart

• Controls safe connectivity to the grid
• Detects power cuts automatically
• Provides near seamless transition  to backup
• Uses wired communication for fast and consistent connection
• Installs and commissions easily
• Offers homeowners remote monitoring and control from the Enphase App

Simple

• Supports three-phase and single-phase configurations for solar and grid
• Support single-phase backup operation on L!
• Supports conduit entry from the bottom,rear,left, and right
• Supports mains/grid connection upto 80 A
• Pre-wired CTs on PV and grid terinals for ease of wiring
• Field replaceable components
• Integrated IQ Gateway board,Production CTs, Consumption CTs and IQ Relay

Technical Specifications

• 12 DIN spaces. 10 DIN spaces for DER (PV and storage) breaker, and 2 DIN spaces for incoming mains, backup, and non-backup load breaker(s).
• Maximum continuous current: 63 A per phase
• Nominal voltage: 230 VAC L-N and 400 V L-L (WYE)
• Single-phase backup

Dimension and Weight

Warranty

IQ System Controller: 10 years

System shutdown switch: 5 years

Mobile connect: 5 years

IQ relay: 5 years
