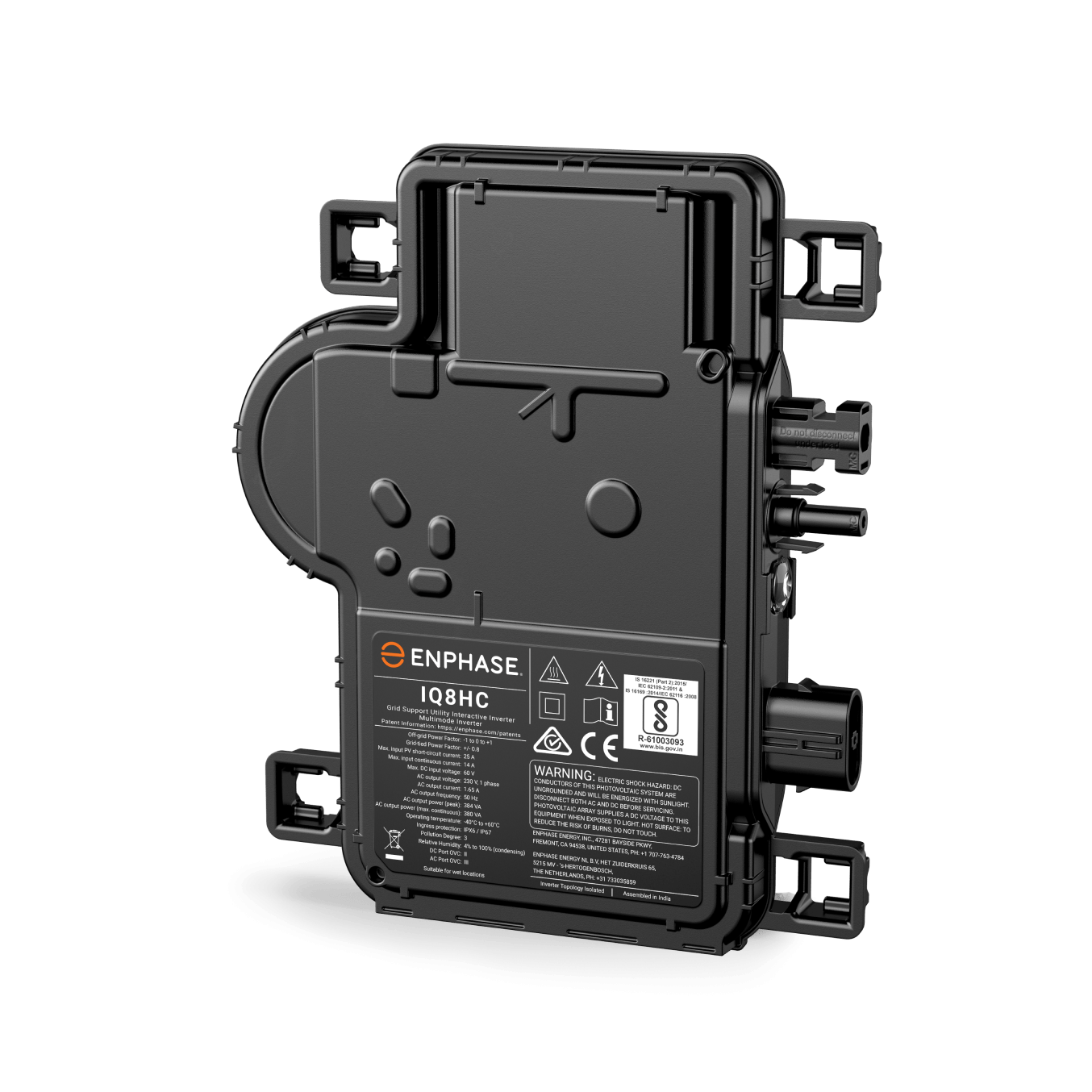

Enphase IQ8HC Micro inverter

The high-powered, smart grid-ready IQ8HC Microinverters are designed to match the latest generation high output PV modules. The IQ8HC Microinverters have the highest energy production and reliability standards in the industry, and with rapid shutdown functionality, it meets the highest safety standards.

The brain of the semiconductor-based microinverter is our proprietary, application-specific integrated circuit (ASIC) that enables the microinverter to operate in a grid-connected mode. IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.

• Lightweight and compact with plug-and-play connectors
• Power line communication (PLC) between components
• Faster installation with simple two-wire cabling
• More than one million cumulative hours of testing
• Class II double-insulated enclosure
• Optimized for the latest high-powered PV modules
• Complies with the latest advanced grid support
• Remote automatic updates for the latest grid requirements
• Configurable to support a wide range of grid profiles
• Meets IEC 61727, EN/IEC 62109-1, EN/IEC 62109-2
• Integrated MC4 connector

Note: IQ8 Series Microinverters cannot be mixed together with previous generations of Enphase microinverters (IQ7 Series, IQ6 Series, etc.) in the same system.

Technical specifications

• Commonly used module pairings: 360 W - 560 W
• Maximum output power: 384 VA
• Input voltage range: 18 – 60 V

Length:212mm

Width:175mm

Height:30.2mm

Weight:1.1kg

Compatibility

• Compatible with latest-generation high-efficiency PV modules
• Half-cell and bifacial PV modules
• IQ Gateway
• IQ Cable

What is in the box?

• IQ8HC microinverter
• Mounting bracket for installation

Warranty

IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of 15 years, extendable up to 25 years.
