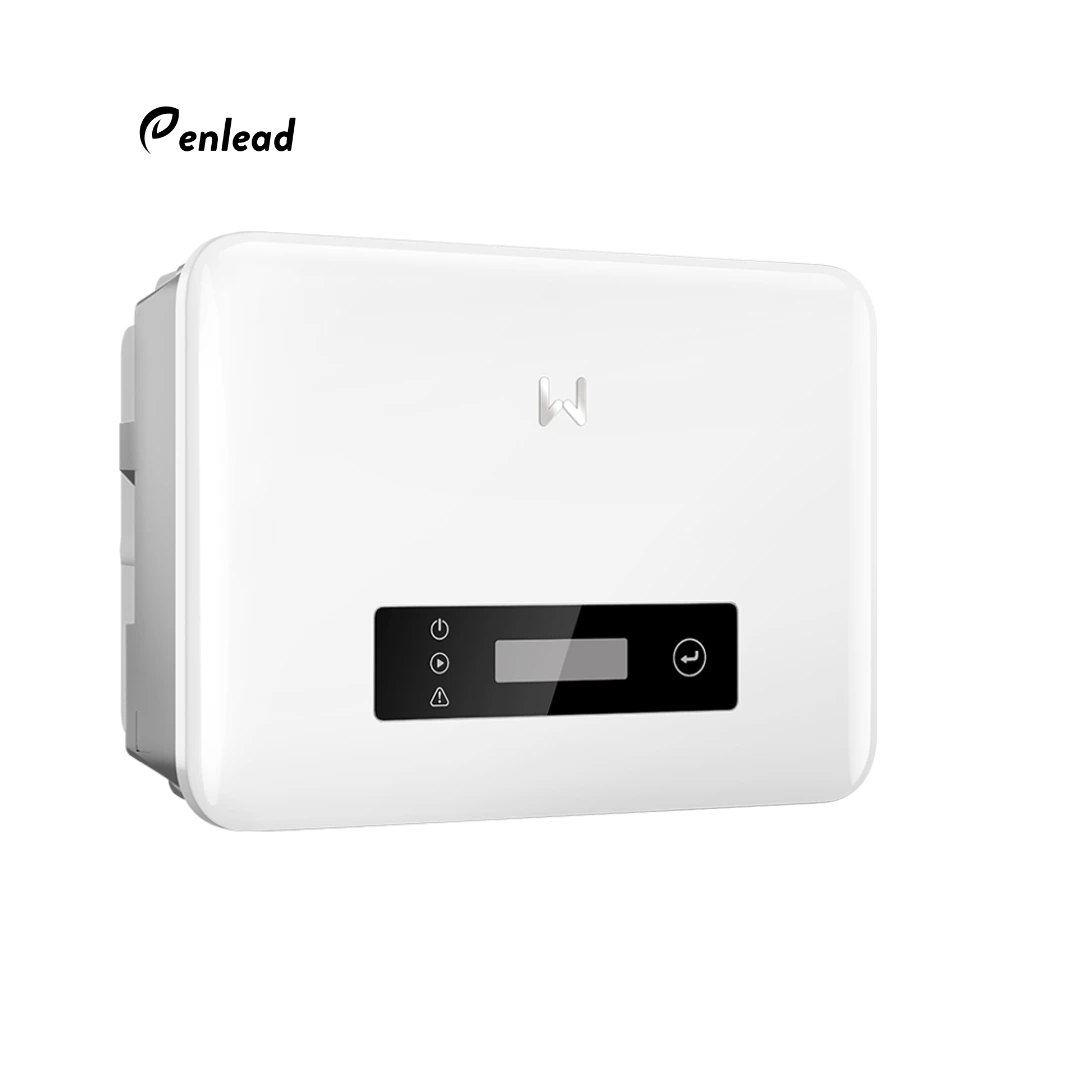

GoodWe 3.3kW On-Grid Solar Inverter GW-3300-XS-30
GoodWe 3.3kW On-Grid Solar Inverter GW-3300-XS-30
Couldn't load pickup availability
The GoodWe GW-3300-XS-30 is a compact and highly efficient solar inverter designed for residential and small commercial rooftop solar power systems. As a reliable ongrid solar inverter, it converts DC electricity from solar panels into stable AC power for grid-connected applications, helping users reduce electricity bills and improve energy efficiency.
This advanced ongrid inverter features precise MPPT technology that continuously tracks the best operating point of solar panels, ensuring maximum energy generation throughout the day. With support for high DC oversizing, the inverter allows better utilization of solar panels and delivers faster return on investment. Its slim and lightweight design enables easy wall mounting and quick installation in limited spaces.
The GW-3300-XS-30 is compatible with net-metering systems and government programs such as solar subsidy, MNRE subsidy, and PM Surya Ghar when installed with approved rooftop solar components. Smart monitoring through Wi-Fi and RS485 allows users to track generation, export, and system health in real time.
Built with multiple safety protections including anti-islanding, surge protection, and thermal management, this solar inverter ensures long-term reliability, operational safety, and consistent performance in diverse climatic conditions.
Enlead Energy Solutions is a trusted solar energy company and professional solar installer, providing expert design, quality installation, and dependable after-sales support for GoodWe solar inverters and complete solar power systems.
🔧 Technical Specifications – GoodWe GW-3300-XS-30
| Specification | Details |
|---|---|
| Model | GW-3300-XS-30 |
| Inverter Type | On-Grid Solar Inverter |
| Phase | Single Phase |
| Rated AC Output Power | 3,300 W |
| Max DC Input Voltage | 600 V |
| MPPT Trackers | 1 MPPT |
| MPPT Voltage Range | Approx. 50 – 450 V |
| Start-up Voltage | Approx. 50 V |
| Max Input Current | Approx. 15–16 A |
| Nominal AC Voltage | 220 / 230 / 240 V |
| AC Frequency | 50 / 60 Hz |
| Max Efficiency | Up to 97.6% |
| DC Oversizing | Up to 200% |
| Communication | Wi-Fi, RS485 |
| Protection Features | Anti-islanding, surge protection, over-temperature, DC reverse polarity |
| Cooling Method | Natural cooling |
| Ingress Protection | IP65 |
| Dimensions | Approx. 306 × 218 × 119 mm |
| Weight | Approx. 4.6–5.8 kg |
| Application | Residential & small commercial rooftop solar systems |
