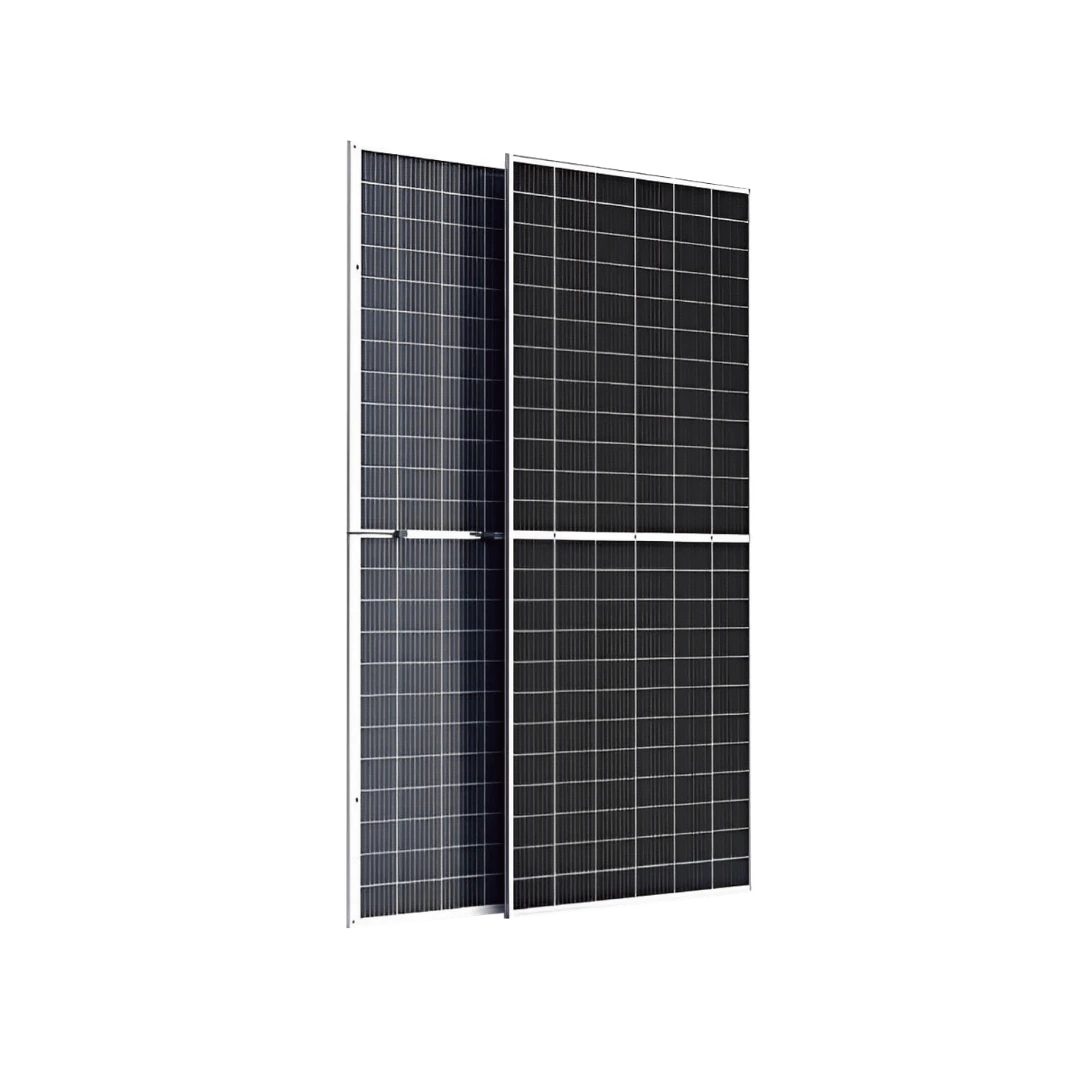

Novasys LYNX 620Wp N-Type TOPCon Bifacial Solar Panel with G12R Cells
Novasys LYNX 620Wp N-Type TOPCon Bifacial Solar Panel with G12R Cells
Couldn't load pickup availability
The Novasys LYNX 620Wp N-Type TOPCon Bifacial Solar Panel is a next-generation high-efficiency solar module engineered to deliver superior energy generation, exceptional durability, and long-term reliability. Built with advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) technology and 132 half-cut G12R cells, this premium solar panel is designed for residential, commercial, industrial, and utility-scale solar power projects.
With a remarkable module efficiency of 22.88%, the Novasys LYNX 620Wp panel maximizes power output while requiring less installation space, making it an excellent choice for rooftop solar systems and large-scale solar plants. The advanced TOPCon cell architecture significantly reduces carrier recombination losses, resulting in higher energy yields, improved low-light performance, and superior temperature characteristics compared to conventional PERC solar panels.
The bifacial double-glass design allows the panel to generate electricity from both the front and rear sides, increasing total energy production and enhancing project profitability. With a bifaciality factor of 80% ± 5%, the module can capture reflected sunlight from the rear surface, delivering additional power gains depending on installation conditions.
The Novasys LYNX series is designed for long-term performance with only 1% degradation in the first year and a low annual degradation rate of 0.4% from the second year onwards, ensuring higher lifetime energy production. The robust dual-glass construction, IP68-rated junction box, anodized aluminum frame, and high mechanical load resistance make it suitable for challenging environmental conditions including high wind, dust, humidity, and snow loads.
With compatibility for PM Surya Ghar Yojana, MNRE subsidy programs, rooftop solar installations, and commercial solar projects, the Novasys LYNX 620Wp TOPCon solar panel offers a future-ready solution for maximizing solar energy generation and reducing electricity costs.
Technical Specifications – Novasys LYNX 620Wp (NSL620TG12RG132)
| Parameter | Specification |
|---|---|
| Model | NSL620TG12RG132 |
| Technology | N-Type TOPCon Bifacial Double Glass |
| Cell Configuration | 132 Half-Cut G12R Cells |
| Rated Power (Pmax) | 620 Wp |
| Module Efficiency | 22.88% |
| Open Circuit Voltage (Voc) | 48.59 V |
| Short Circuit Current (Isc) | 15.89 A |
| Maximum Power Voltage (Vmp) | 40.48 V |
| Maximum Power Current (Imp) | 15.33 A |
| Module Dimensions | 2382 × 1134 × 35 mm |
| Weight | 33.5 ± 0.5 kg |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature | -40°C to +85°C |
| Junction Box | IP68 Rated |
| Frame | Anodized Aluminum Alloy |
| Front Glass | 2.0 mm Semi-Tempered ARC Glass |
| Rear Glass | 2.0 mm Semi-Tempered Glass |
| Cable & Connector | 4 sq.mm Cable with MC4 Compatible Connectors |
| NOCT | 45°C ± 2°C |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Bifaciality Factor | 80% ± 5% |
| First-Year Degradation | 1% |
| Annual Degradation | 0.4% (Year 2–30) |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
Enlead Energy Solutions, a trusted solar energy company and professional solar installer, provides expert consultation, system design, installation, and after-sales support for Novasys TOPCon solar panels and complete solar power systems.
