Saatvik Solar 540wp DCR Bifacial Solar Panels
Saatvik Solar 540wp DCR Bifacial Solar Panels
Couldn't load pickup availability

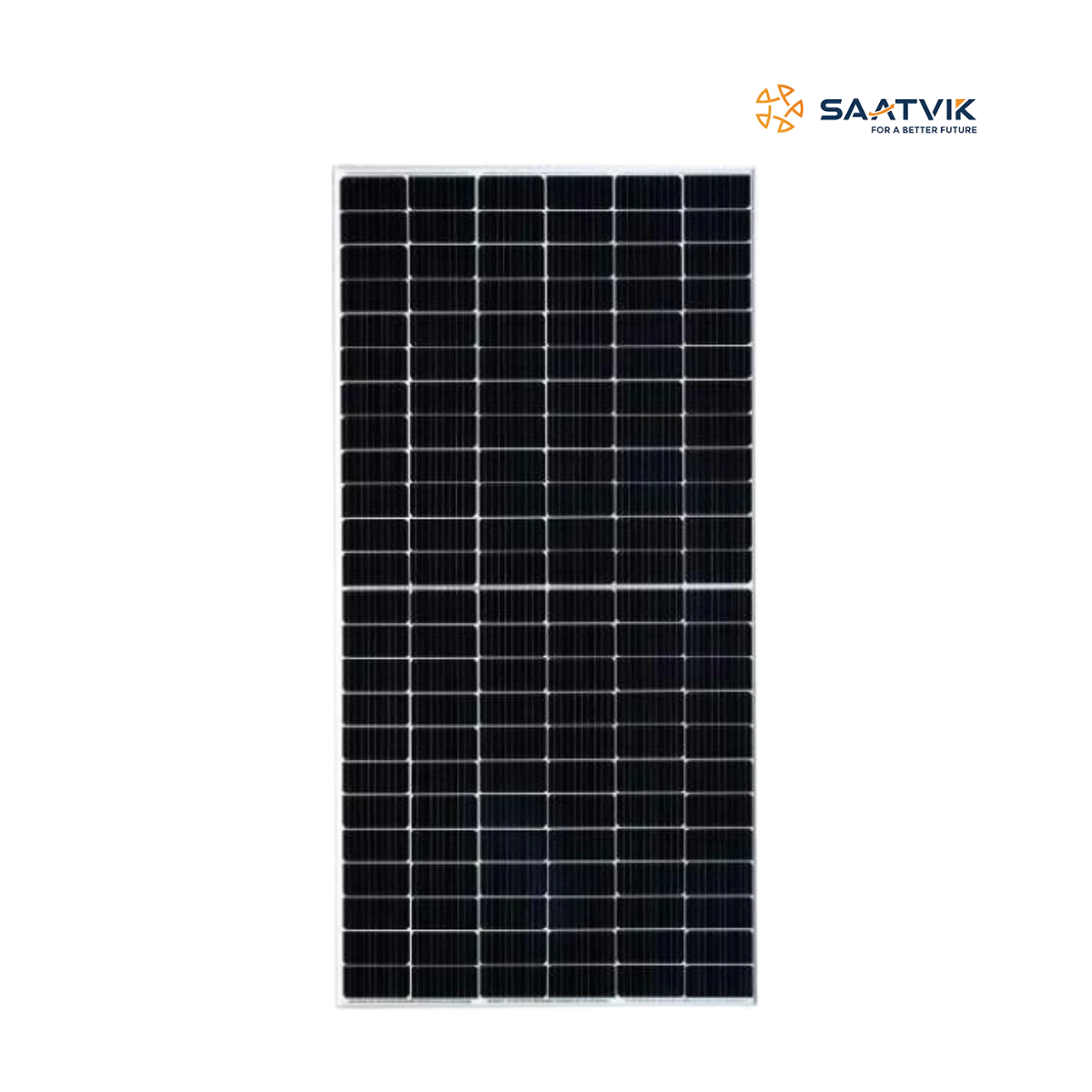

Saatvik 540Wp Mono PERC Half-Cut Bifacial Solar Panel
The Saatvik 540Wp Mono PERC Half-Cut Bifacial Solar Panel is a high-output, utility-grade solar module built to generate more energy per panel—especially in open rooftops, commercial sheds, and ground-mount solar plants. With bifacial solar panel architecture, it can produce additional power from the rear side using reflected light (albedo), helping you increase total yield compared to standard monofacial solar panels.
This Saatvik module uses Mono PERC cells with half-cut design and 10 multi-busbar (MBB) technology to reduce resistive losses, improve low-light performance, and maintain stable output even during partial shading.
Engineered for Indian site conditions, the panel is designed to withstand heavy mechanical loads (wind and snow ratings listed in the datasheet) and is tested with multiple quality checks like IV measurement, HiPOT, EL and visual inspections. It also lists strong PID resistance and suitability for harsh environments, making it a dependable choice for long-term solar generation.
If you’re comparing solar panels or solar modules in the 540Wp category, this Saatvik bifacial module is a solid fit for projects where you want:
-
higher generation per square meter,
-
better performance in low irradiance,
-
and the option to gain extra output via rear-side generation.
Technical Specifications (Saatvik Bifacial Mono PERC 144 Cells – 540Wp)
Electrical (STC & NOCT)
STC: 1000 W/m², 25°C, AM 1.5 | NOCT: 800 W/m², 20°C ambient, wind 1 m/s (as listed in datasheet).
| Parameter | Value (540Wp Model) |
|---|---|
| Peak Power (Pmax) – STC | 540 W |
| Voltage at Pmax (Vmp) – STC | 41.77 V |
| Current at Pmax (Imp) – STC | 12.93 A |
| Open Circuit Voltage (Voc) – STC | 49.45 V |
| Short Circuit Current (Isc) – STC | 13.59 A |
| Peak Power (Pmax) – NOCT | 401 W |
| Vmp – NOCT | 39.43 V |
| Imp – NOCT | 10.17 A |
| Voc – NOCT | 46.68 V |
| Isc – NOCT | 10.98 A |
| Module Efficiency (front, as listed in the series table) | ≈20.90% |
Bifacial gain (rear-side output examples)
| Rear-side Gain | Resulting Power (from datasheet table) |
|---|---|
| +5% | 567 W |
| +10% | 594 W |
| +15% | 621 W |
Mechanical & System
| Parameter | Value |
|---|---|
| Cell type / layout | Half Cut Mono PERC, 144 cells |
| Dimensions (L × W × H) | 2278 × 1134 × 35 mm |
| Weight | 28 kg |
| Front glass | 3.2 mm tempered glass |
| Backsheet | Transparent backsheet (datasheet) |
| Frame | Silver anodized aluminium profile |
| Junction box | IP68, 3 bypass diodes |
| Connector | MC4 compatible |
| Cable | 350 mm, 4 mm² |
| Operating temperature | -40°C to +85°C |
| Max system voltage | 1500 VDC |
| Max series fuse rating | 25 A |
| Power tolerance | 0 to +3% |
| Temperature coefficient (Pmax) | -0.36%/°C |
| Temperature coefficient (Voc) | -0.28%/°C |
| Temperature coefficient (Isc) | +0.048%/°C |
| NOCT | 45 ± 2°C |
| Bifaciality factor | 70% ± 5% |
Solar Subsidy
Solar Subsidy is provided under PM Surya Ghar Muft Bijli Yojana programme by Govt of India. This subsidy programme is monitored and executed by MNRE-Ministry of New and Renewable Energy. You may apply for solar subsidy by login to National Portal for Rooftop Solar.
About Enlead Energy Solutions
Enlead Energy Solutions is a trusted solar energy company providing end-to-end solar panel installation services for homes, businesses, and industries. From expert site assessment and system design to installation, commissioning, and after-sales support, Enlead Energy makes the switch to clean, reliable solar power simple and hassle-free. If you’re planning to install high-quality solar panels like the Saatvik 540Wp bifacial solar module, you can confidently approach Enlead Energy Solutions for professional guidance, transparent pricing, and long-term performance assurance.
Share
Saatvik Solar Panels
Is this solar panel suitable for home installations?
Yes. While it is commonly used in commercial and utility projects, this solar panel is also suitable for homes with adequate rooftop space and good reflective surfaces.
What is Mono PERC technology in solar modules?
Mono PERC technology improves light absorption and reduces energy loss, resulting in higher efficiency and better performance in low-light conditions compared to traditional solar modules.
How much extra power can bifacial solar panels generate?
Depending on installation conditions and surface reflectivity, bifacial solar panels can generate 5–15% additional power compared to monofacial modules.
Can Saatvik 540Wp panels be used with hybrid or on-grid systems?
Yes. These solar panels are compatible with on-grid, off-grid, and hybrid solar inverter systems.
Are Saatvik solar panels reliable for Indian weather?
Yes. Saatvik solar modules are designed to withstand high temperatures, humidity, and wind loads, making them ideal for Indian climatic conditions, including Kerala.
