Sigenergy Sigen Hybrid Inverter 5.0 SP2 | 5kW Single Phase Hybrid Solar Inverter

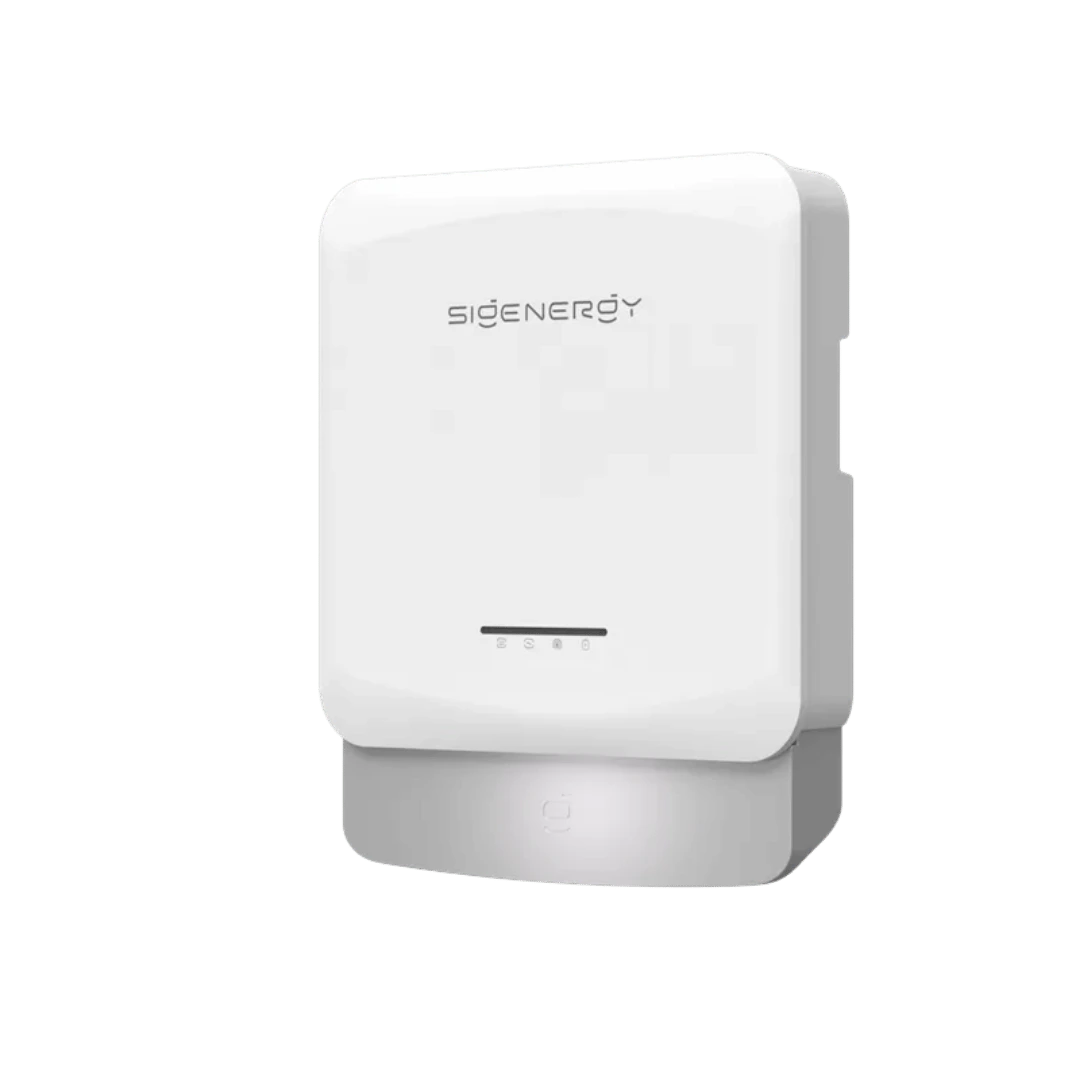

Sigenergy Sigen Hybrid Inverter 5.0 SP2
The Sigenergy Sigen Hybrid Inverter 5.0 SP2 is a high-performance 5kW single-phase hybrid solar inverter designed to deliver efficient, reliable, and intelligent energy management for modern homes. Built for seamless integration with rooftop solar panels and the Sigenergy SigenStor Battery System, this inverter enables homeowners to maximise solar energy consumption, reduce electricity costs, and enjoy uninterrupted power during grid outages.
Engineered with advanced dual MPPT technology, the Sigen Hybrid Inverter continuously optimises energy generation, even when solar panels are installed on multiple roof orientations. With a maximum efficiency of 98.6%, it converts more solar energy into usable electricity, helping you get the most out of your rooftop solar investment.
The inverter's sleek 99 mm ultra-slim profile, silent 25 dB operation, and IP66-rated enclosure make it suitable for both indoor and outdoor installations. It also supports intelligent energy storage, allowing excess solar power generated during the day to be stored and used whenever required, reducing dependence on the electricity grid while increasing energy independence.
Whether you are installing a new residential solar system or upgrading an existing one, the Sigenergy Sigen Hybrid Inverter 5.0 SP2 offers outstanding efficiency, dependable backup power, and smart energy management in one compact solution. The product specifications and features are based on the manufacturer's datasheet.
Why Choose the Sigenergy Sigen Hybrid Inverter 5.0 SP2?
Designed for the next generation of residential solar systems, the Sigenergy 5.0 SP2 combines cutting-edge inverter technology with intelligent battery integration to maximise self-consumption and minimise electricity bills. Its high conversion efficiency, dual MPPT design, and advanced protection features ensure consistent performance in varying weather conditions, while the ability to deliver up to 200% peak backup power helps keep essential appliances running during power interruptions.
With built-in communication options including WLAN, Ethernet, RS485, and optional 4G connectivity, users can conveniently monitor and manage their solar energy system. Natural convection cooling ensures reliable operation without the noise and maintenance associated with fan-cooled inverters.
Key Features
- 5kW Single Phase Hybrid Solar Inverter
- Supports up to 10kW solar PV input
- Maximum efficiency of 98.6%
- European efficiency of 98.3%
- Dual MPPT for improved solar energy harvest
- Up to 200% peak backup output
- Compatible with Sigenergy SigenStor Battery System
- Ultra-slim 99 mm compact design
- Quiet operation with only 25 dB noise level
- IP66-rated dustproof and waterproof enclosure
- Fanless natural convection cooling
- Integrated Arc Fault Circuit Interruption (AFCI)
- Advanced DC and AC surge protection
- WLAN, Fast Ethernet, RS485, and optional 4G communication
- Suitable for indoor and outdoor installations
Ideal Applications
- Residential rooftop solar systems
- Homes with battery energy storage
- Villas and independent houses
- Net metering solar installations
- Backup power applications
- Smart home energy management systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Sigenergy |
| Model | Sigen Hybrid Inverter 5.0 SP2 |
| Product Type | Hybrid Solar Inverter |
| Phase | Single Phase |
| Rated AC Output Power | 5000 W |
| Maximum PV Input Power | 10000 W |
| Maximum DC Input Voltage | 600 V |
| Nominal DC Input Voltage | 350 V |
| MPPT Voltage Range | 50 – 550 V |
| Start-up Voltage | 100 V |
| Number of MPPT Trackers | 2 |
| PV Strings per MPPT | 1 |
| Maximum Input Current per MPPT | 16 A |
| Maximum Short Circuit Current per MPPT | 22 A |
| Battery Voltage Range | 300 – 600 V |
| Compatible Battery | Sigenergy SigenStor BAT Series |
| Maximum AC Output Apparent Power | 5500 VA |
| Rated Grid Voltage | 220 / 230 / 240 V |
| Rated Grid Frequency | 50 / 60 Hz |
| Maximum Output Current | 25 A |
| Maximum Efficiency | 98.6% |
| European Efficiency | 98.3% |
| Peak Backup Output | Up to 200% of Rated Power |
| Protection Rating | IP66 |
| Cooling Method | Natural Convection |
| Noise Level | 25 dB |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Maximum Operating Altitude | 4000 m |
| Relative Humidity | 0–100% |
| Communication | WLAN, Fast Ethernet, RS485, Sigenergy CommMod (4G/3G/2G) |
| Installation | Wall Mounted |
| Dimensions (W × H × D) | 373 × 473 × 99 mm |
| Weight | 11.5 kg |
