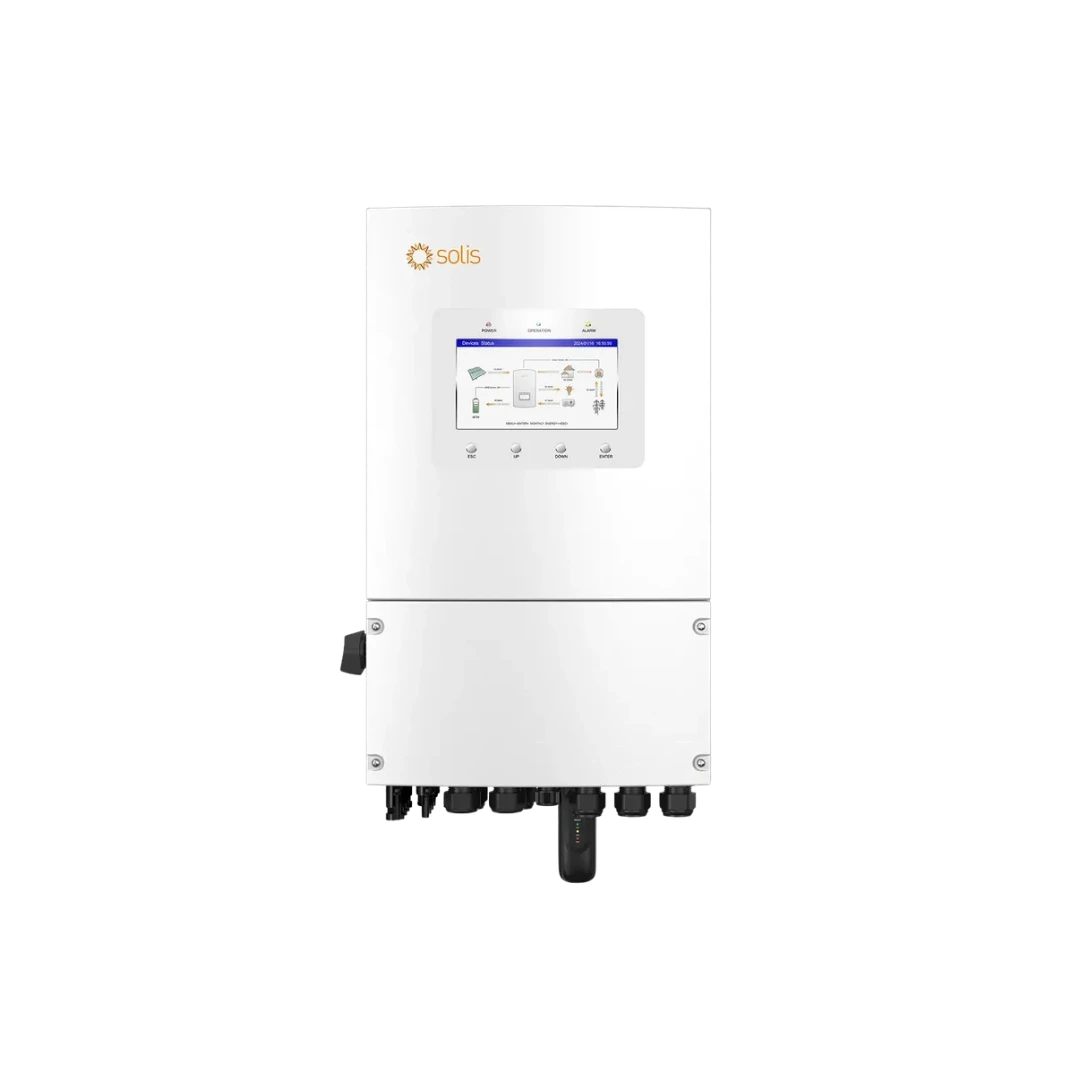

Solis 5kW Hybrid Solar Inverter S6-EH1P5K-L-PLUS
Solis 5kW Hybrid Solar Inverter S6-EH1P5K-L-PLUS
Couldn't load pickup availability
The Solis S6-EH1P5K-L-PLUS 5kW Hybrid Solar Inverter is a high-performance energy storage solution designed for modern homes and small businesses in India. This advanced hybrid solar inverter intelligently integrates solar panels, the utility grid, generator input, and lithium battery storage to create a reliable and efficient solar panel system for home use. Ideal for a hybrid solar system for home, this smart solar inverter ensures uninterrupted power supply during outages with an ultra-fast backup switchover time of less than 4 milliseconds. It supports both Li-ion and lead-acid batteries in the 40–60V range, making it a perfect choice for a solar system with lithium battery.
With a maximum efficiency of 96.2%, two MPPT trackers, and support for up to 10kW of recommended PV array size, the Solis 5kW hybrid inverter maximizes solar energy generation and significantly reduces electricity bills. It delivers up to 5kW charge and discharge power with a maximum battery current of 112A. Advanced features such as 200% overload capability for 10 seconds, generator compatibility for extended backup, and dual backup ports for intelligent load management make it one of the best hybrid solar inverters in India. Its IP66-rated enclosure and robust design ensure dependable performance in all weather conditions.
The Solis 5kW solar inverter is fully compatible with net metering and rooftop solar systems installed under PM Surya Ghar: Muft Bijli Yojana, Ministry of New and Renewable Energy (MNRE) solar subsidy programs, helping homeowners lower installation costs and maximize returns on investment. Smart monitoring through LCD, Bluetooth, mobile app, and optional Wi-Fi provides real-time visibility and control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | S6-EH1P5K-L-PLUS |
| Rated Output Power | 5 kW |
| Recommended Max. PV Array Size | 10 kW |
| Max. Usable PV Input Power | 8 kW |
| Maximum Input Voltage | 500 V |
| MPPT Voltage Range | 90–435 V |
| Number of MPPTs | 2 |
| PV Input Current | 16 A / 16 A |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Power | 5 kW |
| Max. Charge/Discharge Current | 112 A |
| Backup Switch Time | < 4 ms |
| Maximum Efficiency | 96.2% |
| EU Efficiency | 96.1% |
| Battery to AC Efficiency | 93.8% |
| Protection Rating | IP66 |
| Dimensions (W × H × D) | 335 × 560 × 227 mm |
| Weight | 21.6 kg |
| Communication | CAN, RS485, Bluetooth, App, Optional Wi-Fi |
| Operating Temperature | -40°C to +60°C |
| Cooling | Natural Convection |
| Display | LCD + Bluetooth + APP |
Enlead Energy Solutions is a trusted solar energy company and professional solar installer in India, offering premium rooftop solar systems, hybrid solar inverters, lithium ion battery storage, and complete support for MNRE subsidy and PM Surya Ghar applications.
