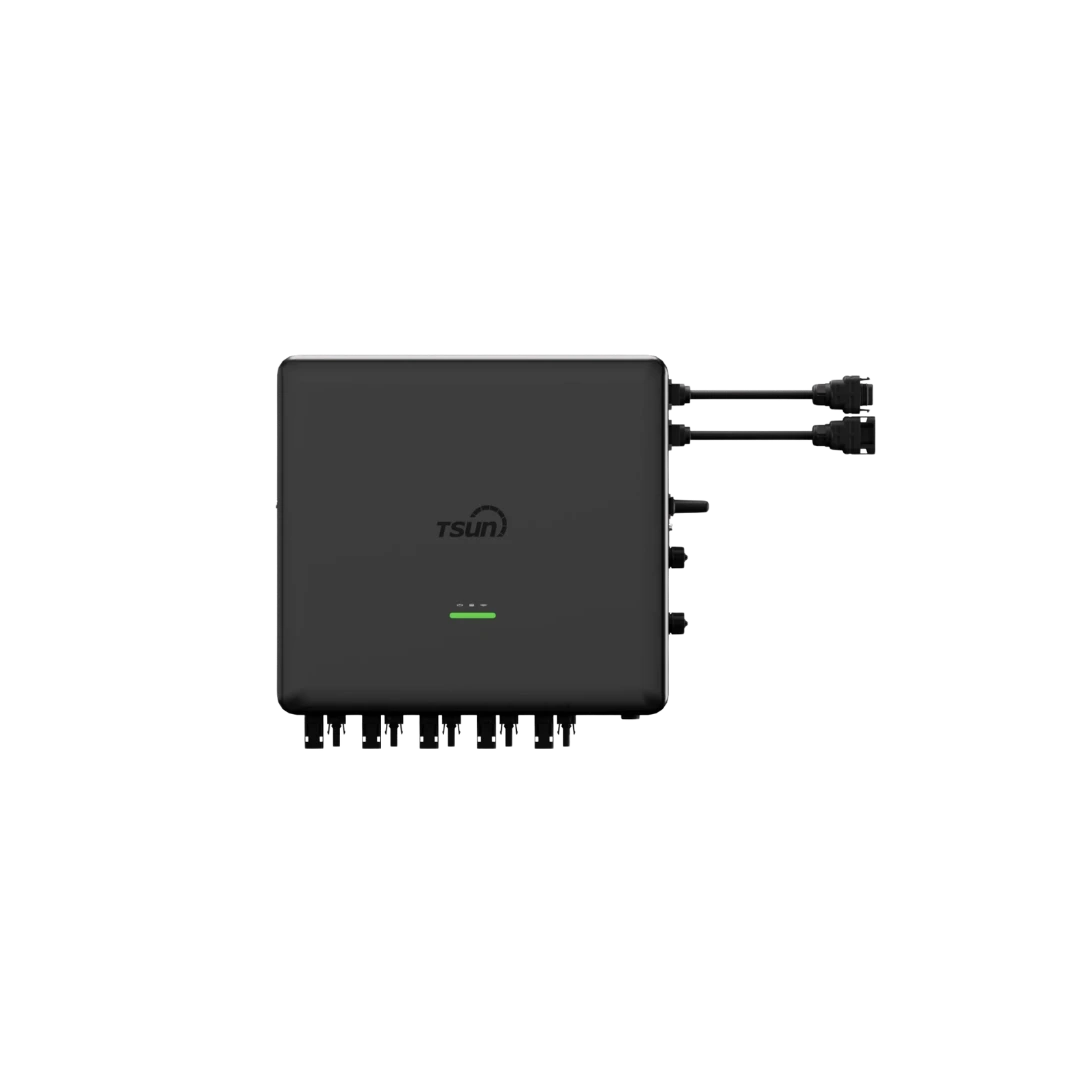

TSUN TSOL-MH2000 Hybrid Solar Microinverter
TSUN TSOL-MH2000 Hybrid Solar Microinverter
Couldn't load pickup availability
The TSUN TSOL-MH2000 Hybrid Solar Microinverter is an advanced energy conversion solution designed to maximize the performance of modern rooftop solar systems. Combining the advantages of microinverter technology with intelligent battery energy storage, this innovative hybrid microinverter allows homeowners to generate, store, and utilize solar energy more efficiently than conventional solar systems.
Unlike traditional string inverters, the TSOL-MH2000 operates at the module level, improving energy harvest from individual solar panels while seamlessly integrating with compatible battery systems. Excess solar energy generated during the day is automatically stored for later use, enabling greater energy independence, lower electricity bills, and reliable backup power during outages.
Whether you are installing a new rooftop solar system or upgrading an existing installation with battery storage, the TSUN Hybrid Solar Microinverter provides a future-ready solution for smarter energy management. It supports plug-and-play installation, intelligent energy flow, zero-export capability, and advanced monitoring, making it an ideal choice for residential solar applications. The inverter supports various battery types including lithium and lead-acid batteries and features bidirectional inverter technology for efficient charging and discharging.
Why Choose the TSUN TSOL-MH2000 Hybrid Solar Microinverter?
The TSOL-MH2000 is engineered to deliver higher solar utilization while providing the flexibility of integrated battery storage. By combining module-level power conversion with intelligent energy management, it ensures every unit of solar energy is used effectively.
Its compact design, high conversion efficiency, and advanced communication features make it suitable for homeowners looking to reduce grid dependence while preparing for future energy demands.
Key Features
- Hybrid microinverter with integrated battery charging and discharging
- Compatible with lithium-ion (LiFePO₄) and lead-acid battery systems
- Bidirectional inverter technology for intelligent energy management
- Supports zero-export applications
- Time-of-use energy optimization for dynamic electricity tariffs
- Black start capability using solar PV or utility grid
- Parallel operation for single-phase and three-phase installations
- Power bypass mode prioritizing direct solar consumption
- Four independent MPPTs for maximum energy harvest
- Remote monitoring through Wi-Fi, Bluetooth and dual RS485 communication
- Robust IP65-rated enclosure suitable for outdoor installation
- Natural convection cooling for quiet and maintenance-free operation
Built for Maximum Solar Performance
The TSUN TSOL-MH2000 delivers exceptional efficiency with up to 99.9% MPPT efficiency, 97.0% peak inverter efficiency, and 96.7% European efficiency, ensuring optimum power conversion under varying weather conditions. Four independent MPPT trackers further improve energy production by minimizing mismatch losses caused by shading or panel orientation differences.
Ideal Applications
The TSUN Hybrid Solar Microinverter is suitable for:
- Residential rooftop solar systems
- Hybrid solar systems with battery backup
- Smart homes
- Plug-and-play solar storage solutions
- Grid-tied solar systems with battery storage
- Solar self-consumption optimization
- Homes requiring backup power during grid outages
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSUN TSOL-MH2000 |
| Product Type | Hybrid Solar Microinverter |
| Recommended PV Module Power | 400–700+ W |
| Number of PV Modules | 1–4 |
| Number of MPPTs | 4 |
| Number of DC Inputs | 4 (MC4) |
| Maximum PV Input Voltage | 60 V |
| MPPT Operating Voltage Range | 16–60 V |
| Maximum Input Current per Input | 18 A |
| Maximum Short Circuit Current per Input | 22 A |
| Battery Nominal Voltage | 51.2 V |
| Battery Operating Voltage Range | 43.2–58.4 V |
| Maximum Battery Capacity | Up to 10 kWh |
| Maximum Charge Power | 2000 W |
| Maximum Charge Current | 50 A |
| Maximum Discharge Power | 2000 W |
| Maximum Discharge Current | 50 A |
| Maximum AC Output Power | 2000 W* |
| Maximum AC Output Current | 10 A |
| Maximum AC Input Power | 2000 W |
| Maximum AC Input Current | 11 A |
| Nominal AC Voltage | 220 / 230 / 240 V |
| Nominal AC Frequency | 50 / 60 Hz |
| Power Factor | >0.99 (Adjustable 0.8 leading to 0.8 lagging) |
| THDi | ≤3% @ 100% Load |
| Off-Grid Output Voltage | 220 / 230 / 240 V |
| Off-Grid Frequency | 50 / 60 Hz |
| Transfer Time | <10 ms |
| Peak Output Apparent Power | 150% for 2 seconds |
| Peak Inverter Efficiency | 97.0% |
| European Efficiency | 96.7% |
| MPPT Efficiency | 99.9% |
| Battery Charge / Discharge Efficiency | 95% / 95% |
| Communication | Wi-Fi (Bluetooth) + 2 × RS485 |
| Protection Rating | IP65 |
| Cooling Method | Natural Convection |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | 0–95% (Non-condensing) |
| Maximum Operating Altitude | 2000 m |
| Dimensions (W × H × D) | 360 × 320 × 51 mm |
| Weight | 8 kg |
*Maximum AC output may be limited to 800 W in countries where local regulations require output restrictions.
