Enlead Energy

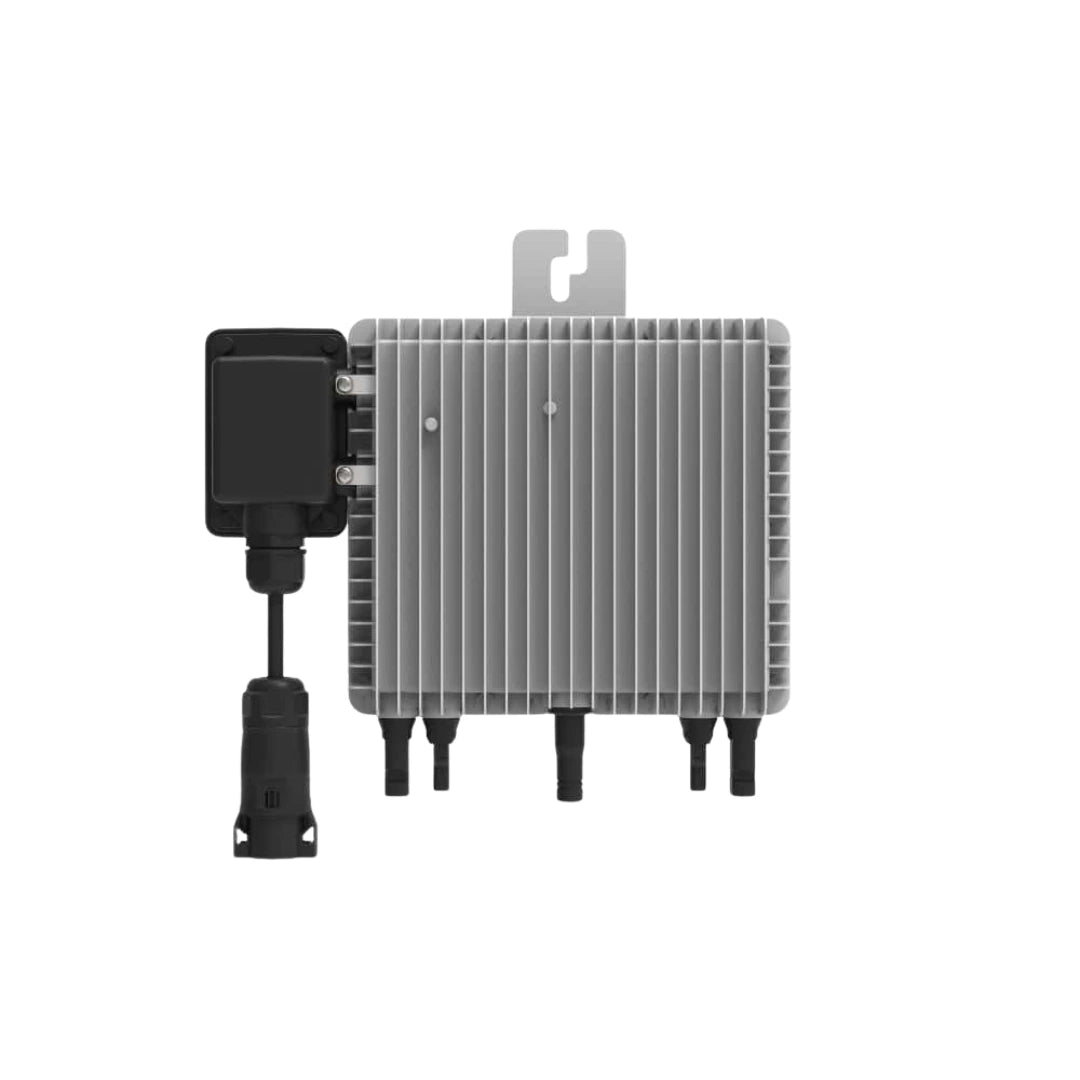

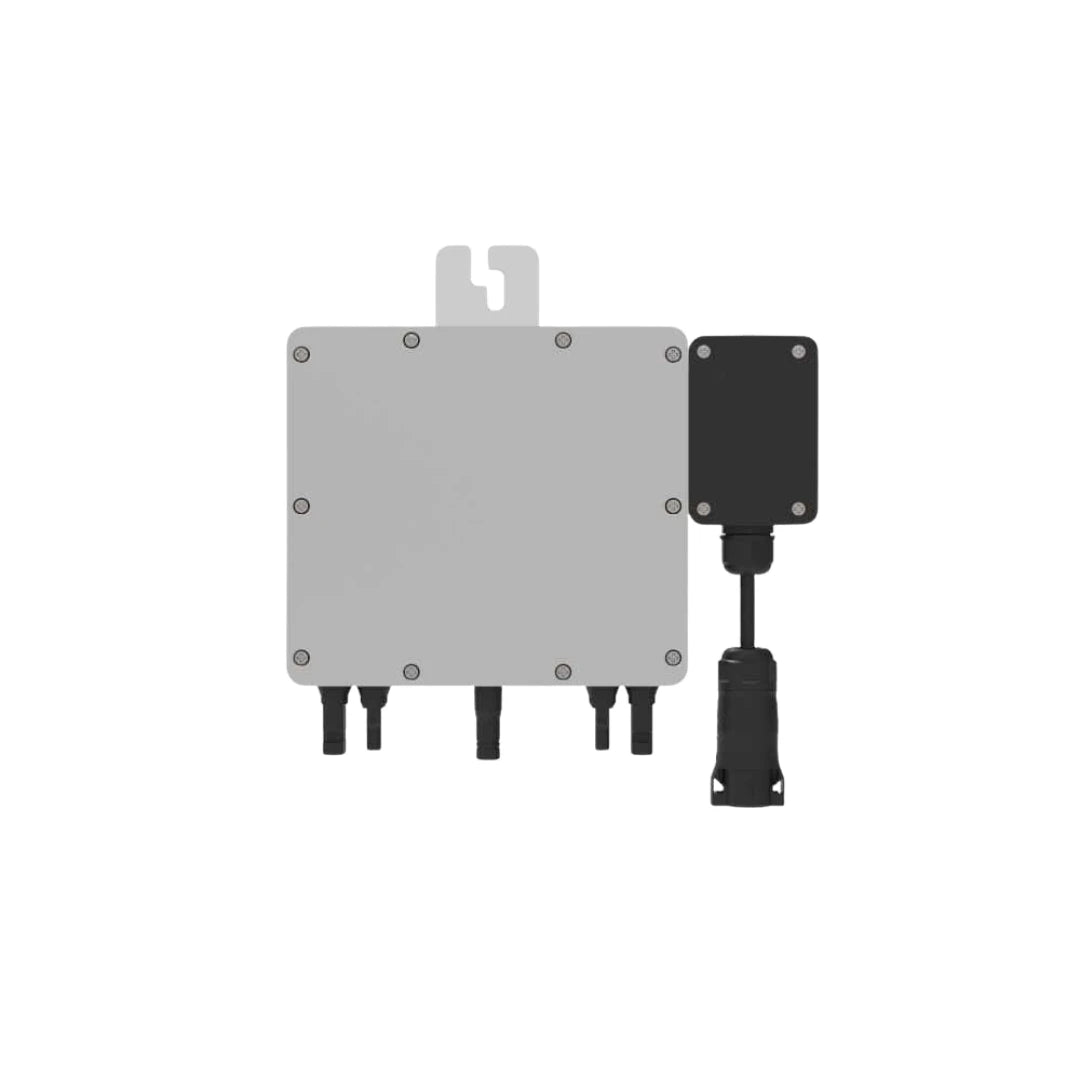

Deye Microinverter SUN-M100G4-EU-Q0

Deye Microinverter SUN-M100G4-EU-Q0

Rs. 12,499.00
Rs. 15,499.00 Rs. 12,499.00
Sale Sold out

Deye SUN-M100G4-EU-Q0 Microinverters

The SUN-M100G4-EU-Q0 series microinverter is a cutting-edge solution designed for efficient and reliable performance in photovoltaic (PV) systems. Featuring dual Maximum Power Point (MPP) trackers, module-level monitoring, and an IP67 protection rating, this microinverter series ensures superior power conversion and durability for a range of solar energy applications.

The Deye Solar Microinverter is engineered for maximum efficiency, safety, and reliability in modern solar energy systems. Designed to convert DC power from each solar panel into usable AC power, this advanced microinverter technology ensures higher energy yield, improved system flexibility, and enhanced monitoring at the panel level. With features like intelligent MPPT tracking, rapid shutdown compliance, and robust protection mechanisms, the Deye microinverter offers long-lasting performance even in challenging environments. Its modular design allows easy scalability, making it the ideal choice for residential rooftops, commercial projects, and industrial solar installations. By choosing Deye solar microinverters, you get superior durability, seamless grid connectivity, and the confidence of investing in a trusted global solar inverter brand.

Description Of Deye microinverter 1KW

 Key Features

  • Dual MPPT: Equipped with two MPP trackers per module, maximizing energy harvest by optimizing power conversion from each PV module.
  • Robust Protection: The IP67 rating ensures resistance to dust and water, enhancing the inverter’s longevity and reliability in various environments.
  • WiFi Integration: Built-in WiFi facilitates real-time system monitoring and management through an intuitive interface.
  • Rapid Shutdown Function: Enhances safety by complying with the DIN VDE V 0126-95 standard, ensuring AC discharge within <100ms for rapid shutdown.
  • Ease of Installation: Designed for quick-plug balcony PV systems, simplifying the installation process and minimizing setup time.
  • Extended Relay Life: External relay designed for low-temperature operation, offering long life and easier maintenance.
  • Long-Term Reliability: With a 25-year design lifetime and a 15-year warranty, providing assurance of long-term operation and support.

Technical Specifications

  • Model :
    • SUN-M100G4-EU-Q0
  • PV Input:
    • Max. Input Power: 210-700W(2 pieces)
    • Max. Input Voltage: 60V
    • Start-up Voltage: 20V
    • MPPT Voltage Range: 25-55V
    • Max. Operating PV Input Current: 13 + 13A
    • Max. Input Short Circuit Current: 19.5 + 19.5A
  • AC Output:
    • Rated Active Power: 600-1000W
    • Max. Apparent Power: 600-1000VA
    • Grid Connection: L/N/PE
    • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
    • Rated Output Frequency: 50/60Hz
    • Power Factor: 0.9 leading to 0.9 lagging
    • Total Harmonic Distortion (THDi): <3%
    • Max. Efficiency: 96.5%
    • Euro Efficiency: 96.0%
    • MPPT Efficiency: >99%
    • Max. Units per Branch: Up to 8 units
  • Protection Features:
    • DC Polarity Reverse Connection Protection
    • AC Output Overcurrent Protection
    • AC Output Overvoltage Protection
    • AC Output Short Circuit Protection
    • Thermal Protection
    • DC Terminal Insulation Monitoring
    • Power Network Monitoring
    • Island Protection
    • Earth Fault Detection
    • Overvoltage Load Drop Protection
  • Environmental Specifications:
    • Operating Temperature: -40 to +65°C (Derating above 45°C)
    • Permissible Ambient Humidity: 0-100%
    • Permissible Altitude: 2000m
    • Noise Level: ≤25dB
  • Physical Characteristics:
    • Ingress Protection Rating: IP67
    • Cooling Method: Natural Cooling
    • Dimensions: 280.5×190×40 mm (excluding connectors and brackets)
    • Weight: 3 kg
  • Certifications and Standards:
    • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
    • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2







 To install a solar power system for home or hotel or hospital or educational institutions , contact enleadenergy.
