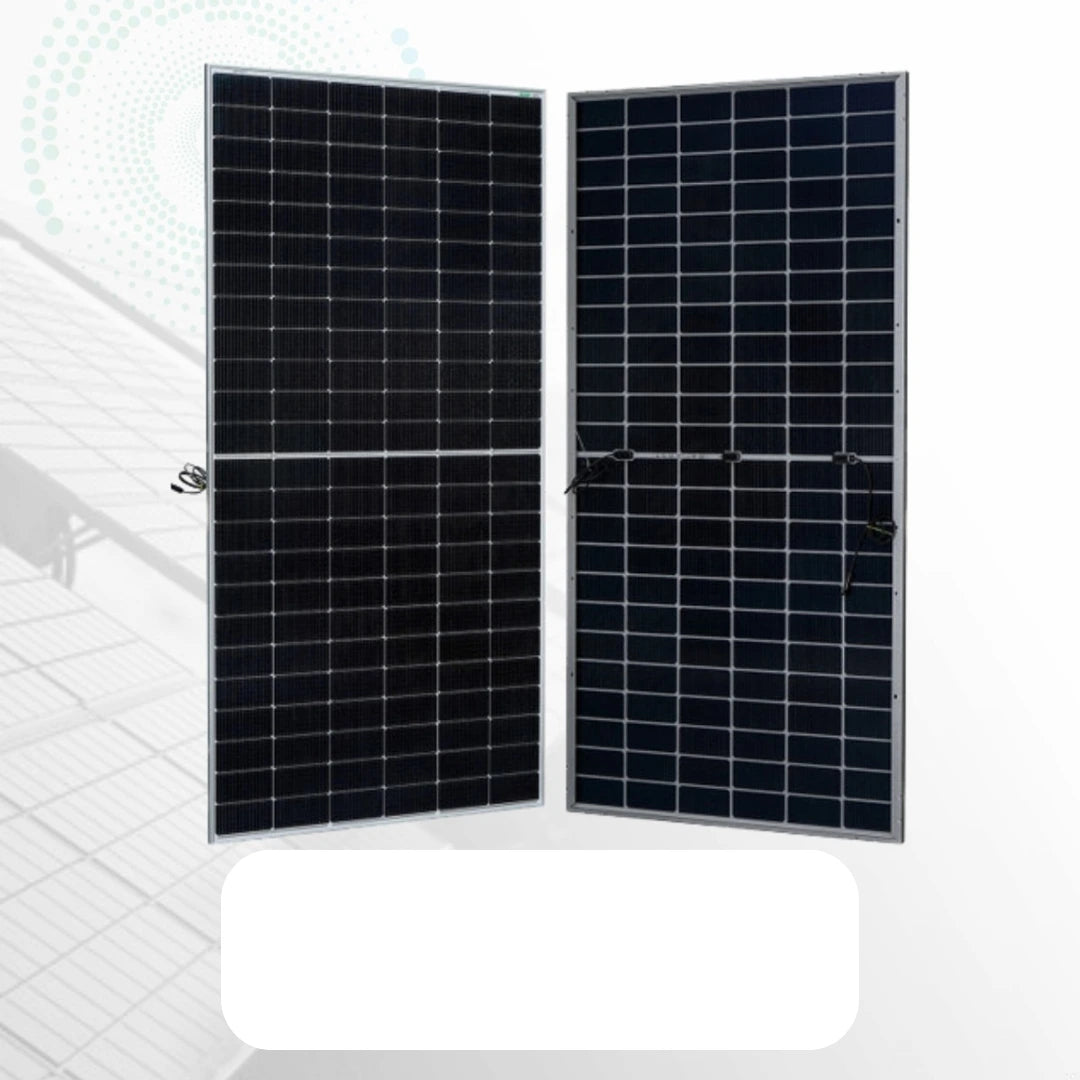

Waaree 580Wp TOPCon DCR Solar Panel | High Efficiency Module
Waaree 580Wp TOPCon DCR Solar Panel | High Efficiency Module
Couldn't load pickup availability
The Waaree 580Wp TOPCon DCR solar panel is a high-performance module designed to deliver exceptional energy output, long-term durability, and reliable efficiency in Indian conditions. Powered by advanced N-Type TOPCon technology, this Waaree solar panel offers superior low-light responsiveness, excellent temperature stability, and significantly lower degradation compared to traditional panels. For residential, commercial, and utility-scale projects, this solar panel provides consistent power generation and maximum return on investment.
Its DCR compliance makes the Waaree solar panel eligible for government subsidy schemes, making it a preferred choice among homeowners and EPC companies. The 580Wp capacity enhances energy yield from smaller rooftops, reducing installation cost per watt. Built with half-cut cells and high-grade materials, the solar panel ensures better shade tolerance, improved module integrity, and long-term operational stability. The anti-reflective tempered glass improves sunlight absorption, while the IP68 junction box safeguards against moisture, dust, and harsh climates.
With a robust aluminum frame, high system voltage capability, and extended performance warranty, the Waaree 580Wp TOPCon DCR solar panel is ideal for anyone seeking a reliable, efficient, and future-ready energy solution. Whether you are upgrading an existing setup or planning a new installation, this solar panel guarantees powerful performance and sustainable energy generation for decades. Built for India and trusted worldwide, this Waaree solar panel stands out as one of the best choices for long-lasting solar power systems.
Technical Specifications – Waaree 580Wp TOPCon DCR Solar Panel
| Specification | Details |
|---|---|
| Brand | Waaree |
| Model | 580Wp TOPCon DCR |
| Technology | N-Type TOPCon |
| Power Output (Pmax) | 580 Wp |
| Module Efficiency | ~22% |
| Cell Type | N-Type TOPCon Half-cut |
| No. of Cells | 144 (Half-cut) |
| Voc | ~52–54 V |
| Isc | ~13–14 A |
| Vmp | ~44–46 V |
| Imp | ~12.5–13 A |
| Dimensions | 2278 × 1134 × 35 mm |
| Weight | 29–31 kg |
| Glass | 3.2 mm AR-coated tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Max System Voltage | 1500 V DC |
| Operating Temp | –40°C to +85°C |
| Power Tolerance | 0 to +5 W |
| DCR Compliant | Yes |
| Warranty | 12-year product, 30-year performance |
To install 3kw solar ongrid power system, 5 kw ongrid solar system, 3kw hybrid solar system, 5kw solar system , Enlead Energy Solutions solar company is here for you.
Share
Waree Solar Panel
What is the lifespan of a waree solar panel?
The average lifespan of a solar panel is typically 25 to 30 years, but this can vary based on the panel type, manufacturer quality, and installation environment. Factors like heat, humidity, and dust can influence long-term performance. With proper maintenance, timely inspections, and regular cleaning, solar panels can last even longer while maintaining high efficiency.
What is the cost of solar panel installation in Waaree?
The cost of installing Waaree solar panels in India depends on factors like system size, type, and specific components. On average, for an on-grid system, the price ranges between ₹40,000 to ₹60,000 per kW. This cost typically includes the panels, installation, and other necessary components.
For example, a 5kW on-grid system might cost around ₹3,50,000 (primarily for the panels), while a 1kW system is generally priced between ₹42,000 and ₹60,000. However, the final cost will depend on the exact configuration and any applicable government subsidies.
Hybrid solar systems, which combine both on-grid and off-grid features, are typically more expensive than standard on-grid systems. A 5kW hybrid solar system, for instance, is estimated to cost around ₹5,50,000.
The price can also vary depending on the type of solar panel technology used. TOPCon (Tunnel Oxide Passivated Contact) panels tend to cost more than standard mono PERC (Passivated Emitter Rear Cell) bifacial modules.
