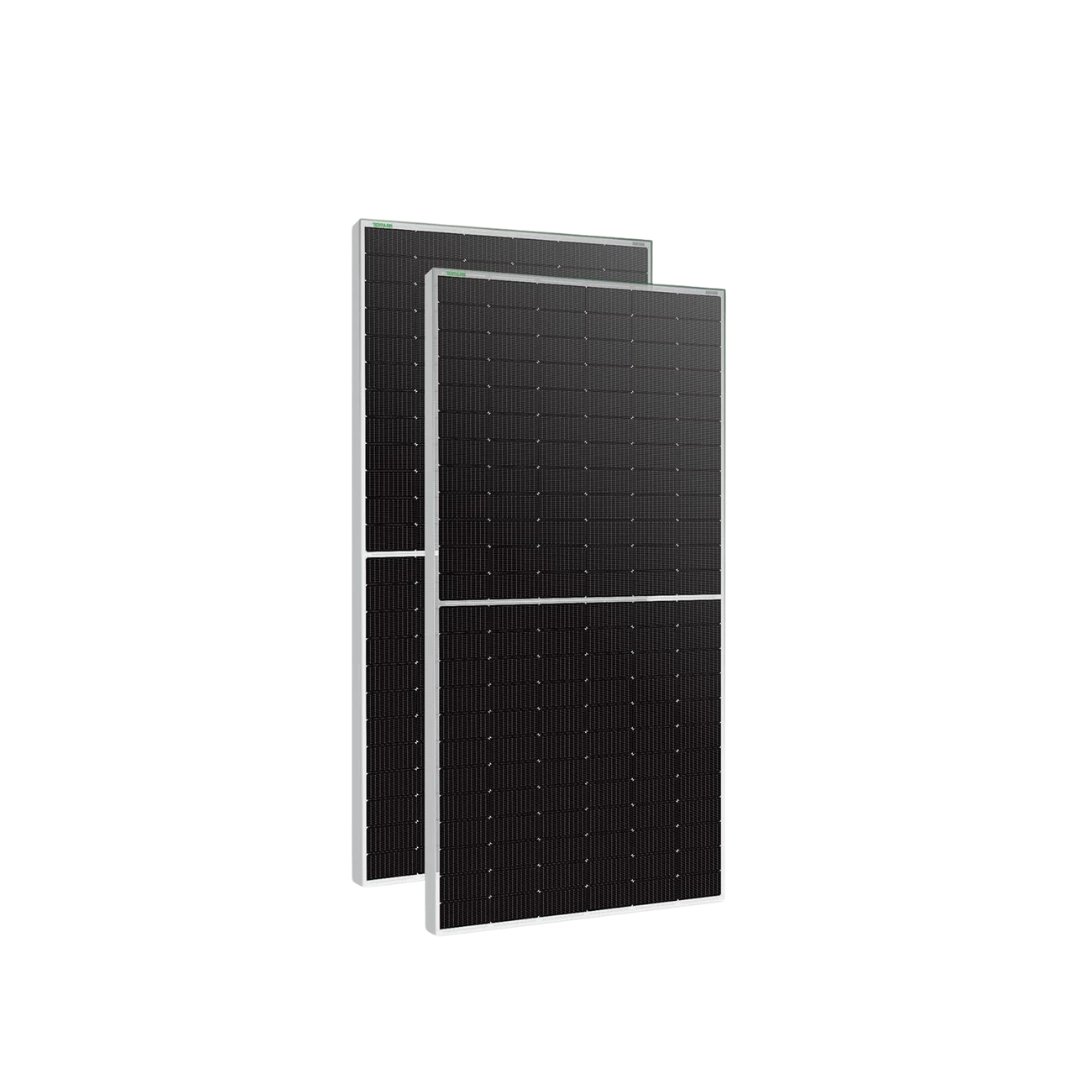

Waaree 615Wp N-Type TOPCon Bifacial Dual Glass DCR Solar Panel – BiN-21-615
Waaree 615Wp N-Type TOPCon Bifacial Dual Glass DCR Solar Panel – BiN-21-615
Couldn't load pickup availability
High-Efficiency 615Wp N-Type TOPCon Solar Panel for Modern Solar Systems
The Waaree BiN-21-615 is a high-performance 615Wp N-Type TOPCon bifacial dual glass solar panel engineered for high energy generation, long-term reliability and improved solar project economics. Part of Waaree's Elite R Series, this advanced solar module combines G12R N-Type TOPCon technology, 132 half-cut cells, bifacial power generation and dual-glass construction to deliver high output from every installed square metre.
With a rated power output of 615W and module efficiency of 22.77%, the BiN-21-615 is designed for customers seeking a high-efficiency solar panel for residential rooftops, commercial buildings, industrial installations and large-scale solar projects. Waaree's official technical documentation specifies 41.14V maximum power voltage, 14.95A maximum power current, 48.90V open-circuit voltage and 15.97A short-circuit current at STC.
The module's bifacial design allows the rear side to utilize reflected and scattered sunlight, potentially increasing total energy generation compared with conventional front-side-only solar modules. Under the manufacturer's stated 30% backside gain condition, the BiN-21-615 can reach a calculated 800W power output, although actual bifacial gain depends on factors such as mounting height, ground reflectivity, row spacing, installation environment and project design.
Advanced N-Type TOPCon Technology
The Waaree BiN-21-615 uses G12R N-Type TOPCon bifacial cells, combining high power density with improved long-term energy performance. The module's 132-cell configuration is arranged as 11 × 6 + 11 × 6 half-cut cells, helping optimize current flow and module performance.
N-Type TOPCon technology makes the BiN-21-615 particularly suitable for high-performance solar installations where maximizing energy generation and available roof or land area is important.
Key advantages include:
- 615Wp high-power output
- 22.77% module efficiency
- N-Type TOPCon cell technology
- 132 half-cut bifacial cells
- G12R cell format
- Dual-glass construction
- 1500V DC system voltage
- 30A maximum series fuse rating
- Strong low-light performance
- High bifacial energy-generation potential
- Long-term power output warranty
Bifacial Solar Panel for Higher Energy Yield
The Waaree BiN-21-615 bifacial solar panel captures sunlight on both sides of the module. The front side receives direct solar radiation while the rear side can convert reflected light from the surrounding surface.
For appropriately designed installations, bifacial technology can increase the total energy yield of a solar plant without increasing the number of modules installed.
The manufacturer's datasheet provides backside-gain scenarios of 10%, 15%, 20%, 25% and 30%. At a 30% backside gain, the 615W module is specified at 800W equivalent power output. These figures are indicative and actual generation will vary according to site conditions and system design.
Durable Dual-Glass Construction
The BiN-21-615 uses a framed dual-glass construction designed for long-term outdoor operation. The official datasheet specifies 2mm Low Iron HTAR semi-tempered glass on the front and 2mm Low Iron Printed semi-tempered glass on the rear, combined with PID-free and UV-resistant encapsulation.
The module also incorporates an IP68 weatherproof PPO junction box and MC4-compatible connectors, while the frame is manufactured from anodized aluminium alloy.
Designed for Challenging Environmental Conditions
Waaree's Elite R Series is engineered for demanding solar applications. The module has a specified operating temperature range of -40°C to +85°C, with a NOCT of 43 ± 2°C. Its thermal coefficients are specified as +0.046%/°C for Isc, -0.26%/°C for Voc and -0.30%/°C for Pmax.
The module is also designed for a 1500V system voltage and has a 30A series fuse rating, making it suitable for modern high-voltage solar PV system designs.
High Power from a Compact Installation Footprint
The BiN-21-615 delivers 615W from a module measuring 2382 × 1134 × 35mm and weighing approximately 33.8kg, according to Waaree's technical datasheet. It uses 132 G12R N-Type TOPCon bifacial cells.
The combination of high wattage and high module efficiency makes this solar panel particularly useful where available installation space is limited and maximizing installed capacity is important.
Ideal for Residential, Commercial and Industrial Solar Projects
The Waaree 615Wp TOPCon solar panel can be considered for a wide range of applications, including:
- Residential rooftop solar systems
- Commercial rooftop solar
- Industrial solar power plants
- Large rooftop installations
- Ground-mounted solar projects
- Utility-scale solar power plants
- Captive solar power projects
- High-capacity grid-connected solar systems
For homeowners, the high wattage can help reduce the number of panels required for a given system capacity. For commercial and industrial projects, higher power density can help optimize installation space, mounting structures and balance-of-system requirements.
Waaree 615Wp Solar Panel Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Waaree Energies |
| Model | BiN-21-615 |
| Product SKU | BIN-21-615-EPEV-16-MC4-0300-STD-DCR |
| Series | Elite R Series |
| Rated Power (Pmax) | 615 Wp |
| Cell Technology | N-Type TOPCon |
| Cell Type | G12R N-Type TOPCon Bifacial |
| Number of Cells | 132 Half-Cut Cells |
| Cell Arrangement | 11 × 6 + 11 × 6 |
| Module Type | Framed Dual Glass Bifacial |
| Module Efficiency | 22.77% |
| Maximum Power Voltage (Vmp) – STC | 41.14 V |
| Maximum Power Current (Imp) – STC | 14.95 A |
| Open Circuit Voltage (Voc) – STC | 48.90 V |
| Short Circuit Current (Isc) – STC | 15.97 A |
| Maximum Power at NOCT | 464 W |
| Vmp at NOCT | 38.34 V |
| Imp at NOCT | 12.05 A |
| Voc at NOCT | 46.46 V |
| Isc at NOCT | 12.87 A |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality | 80 ± 10% |
| Front Glass | 2 mm Low Iron HTAR Semi-Tempered Glass |
| Back Glass | 2 mm Low Iron Printed Semi-Tempered Glass |
| Encapsulant | PID Free & UV Resistant |
| Junction Box | IP68 / Weatherproof PPO |
| Connector | MC4 Compatible |
| Cable Cross-Section | 4 mm² |
| Cable Length | 500 mm |
| Frame | Anodized Aluminium Alloy |
| Module Dimensions | 2382 × 1134 × 35 mm |
| Module Weight | 33.8 kg |
| NOCT | 43 ± 2°C |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient of Isc | +0.046%/°C |
| Temperature Coefficient of Voc | -0.26%/°C |
| Temperature Coefficient of Pmax | -0.30%/°C |
| Product Warranty | 12 Years |
| Power Output Warranty | 30 Years |
The electrical, mechanical and thermal specifications above are based on Waaree's official Elite R Series technical documentation.
Waaree 615Wp Solar Panel Warranty
The BiN-21-615 is backed by a 12-year product warranty and 30-year power output warranty, providing long-term protection for solar installations.
Buy Waaree 615Wp TOPCon Solar Panel from Enlead Energy
Choose the Waaree BiN-21-615 615Wp N-Type TOPCon bifacial solar panel from Enlead Energy for high-performance solar installations. Enlead Energy helps customers select suitable solar panels, inverters, batteries and complete rooftop solar solutions according to their energy requirements and project specifications.
Whether you are planning a home solar panel system, commercial rooftop solar project, industrial solar installation or a large-scale solar plant, the Waaree 615Wp TOPCon bifacial module offers a combination of high power output, advanced N-Type technology, bifacial energy generation and durable dual-glass construction.
For customers looking to buy Waaree solar panels online in India, the BiN-21-615 is a strong option for high-capacity solar PV systems where efficiency, power density and long-term performance matter.
